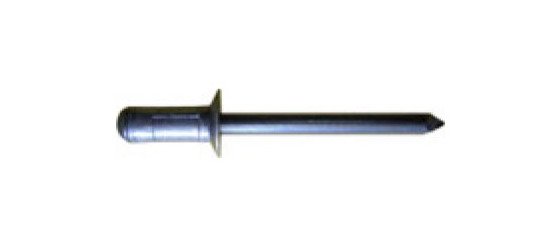

Ornit U-Fix 3.2mm Aluminum Steel Snap Head Rivet
Ornit U-Fix 3.2mm Aluminum Steel Snap Head Rivet
SKU:UFI-b19bfa
Ornit U-Fix Aluminum Steel Snap Head Rivet - Premium solution for industrial applications with 3.2mm diameter & 12.7mm body length.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornit U-Fix 3.2mm Aluminum Steel Snap Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 3.2mm Aluminum Steel Snap Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

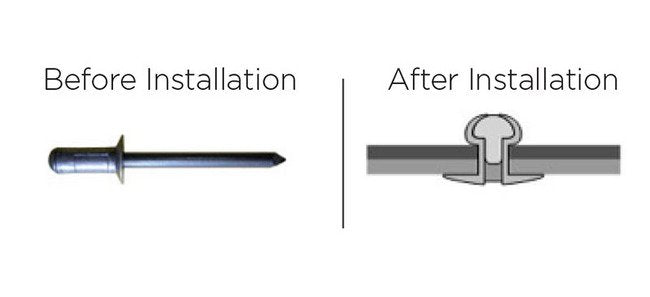

The Ornit U-Fix Aluminum Steel Snap Head Rivet is a premium fastening solution designed for industrial applications. Featuring a 3.2mm diameter and 12.7mm body length, this rivet offers exceptional shear and tensile forces of 75kgf and 104kgf respectively. Constructed with Aluminum Alloy ALmg 2.5 body and Zinc Plated Chromium VI Free low carbon steel mandrel, it ensures durability and corrosion resistance. The snap head design provides a secure closure, making it ideal for use in manufacturing, construction, and aerospace industries. Meet your fastening needs efficiently with the precision and reliability of Ornit U-Fix rivets.
Product Specifications
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
3.2 mm | 1.8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.2 mm | 0.205 in
Nominal Dimensions Head Thickness
1.0 mm | 0.039 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
5.5 mm | 0.217 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Snap Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
