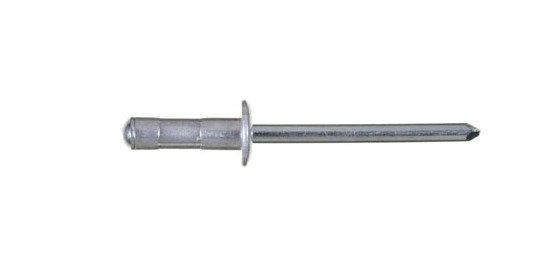

Ornit U-Fix 3.2mm Dome Head Rivets
Ornit U-Fix 3.2mm Dome Head Rivets
SKU:UFI-ffc065
Premium Ornit U-Fix 3.2mm Dome Head Rivets for secure and durable fastening. Meet strict procurement standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit U-Fix 3.2mm Dome Head Rivets
$59.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 3.2mm Dome Head Rivets
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix 3.2mm Dome Head Rivets are crafted from premium Aluminum Alloy ALmg 2.5 with a natural finish, ensuring durability and corrosion resistance. Featuring a 12.7mm body length and a Dome Head style, these rivets offer a secure grip range of 5.5mm to 9.5mm. With a nominal shear force of 75kgf and a nominal tensile force of 104kgf, they meet stringent procurement standards and are ideal for both consumer and institutional applications.
Product Specifications
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
6.4 mm | 0.252 in
Nominal Dimensions Head Thickness
0.95 mm | 0.037 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
5.5 mm | 0.217 in
Nominal Forces Nominal Shear Force
75 kgf | 165 lbf
Nominal Forces Nominal Tensile Force
104 kgf | 230 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
