Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets
Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets
SKU:UFI-009145
Versatile Ornit U-Fix 4.0mm Dome Head Rivets for secure and durable fastening in various applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets
$45.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

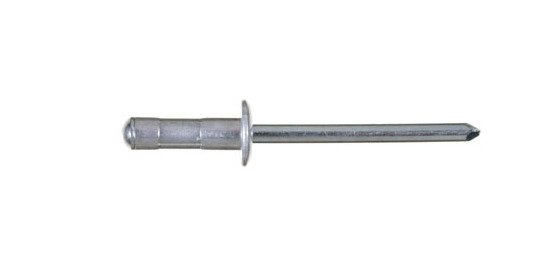

The Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets are precision-engineered fasteners designed for maximum versatility and reliability. Constructed with Aluminum Alloy ALmg 2.5 body and Zinc Plated Chromium (Cr) VI Free mandrel, these rivets offer exceptional strength and corrosion resistance. With a multi-grip function and a nominal shear force of 116 kgf and tensile force of 170 kgf, they are ideal for various applications, ensuring secure and durable fastening solutions. The dome head design provides a professional finish and ease of installation, meeting the stringent requirements of both consumer and institutional buyers.
Product Specifications
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.9 mm | 0.311 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.088 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
