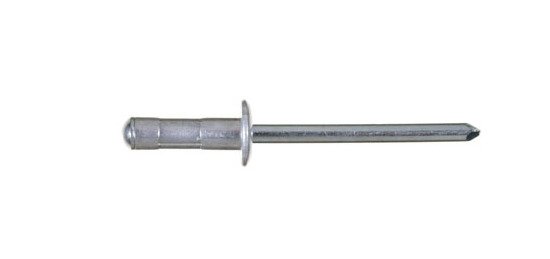

Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets

Name: Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets
Brand: Ornit USA
SKU: UFI-e471f7
Price: 49.99 USD
Availability: OutOfStock

SKU:UFI-e471f7

Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets, ideal for versatile applications with superior grip and strength.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

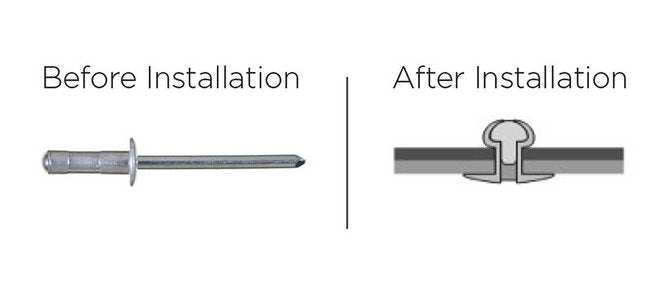

The Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets are a versatile and durable fastening solution designed for various applications. Constructed with Aluminum Alloy ALmg 2.5 body and Zinc Plated Chromium VI Free mandrel, these rivets offer exceptional strength and corrosion resistance. With a nominal shear force of 116 kgf and a nominal tensile force of 170 kgf, they provide reliable performance. The 4.0mm diameter and 11.1mm body length ensure a secure grip range of 3.2mm to 7.9mm, making them ideal for use in main cabin installations.

Product Specifications

Nominal Dimensions Body Length

11.1 mm | 0.437 in

Nominal Dimensions Diameter

4.0 mm | 5/32 in

Nominal Dimensions Drillhole Size

4.1 mm | 0.161 in

Nominal Dimensions Head Diameter

7.9 mm | 0.311 in

Nominal Dimensions Head Thickness

1.20 mm | 0.047 in

Nominal Dimensions Mandrel Diameter

2.11 mm | 2.25 mm | 0.083 in | 0.088 in

Nominal Dimensions Maximum Grip Range

7.9 mm | 0.311 in

Nominal Dimensions Minimum Grip Range

3.2 mm | 0.126 in

Nominal Forces Nominal Shear Force

116 kgf | 255 lbf

Nominal Forces Nominal Tensile Force

170 kgf | 374 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 2.5

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

7000

Technical Specs Head Style

Dome Head

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel

Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets
