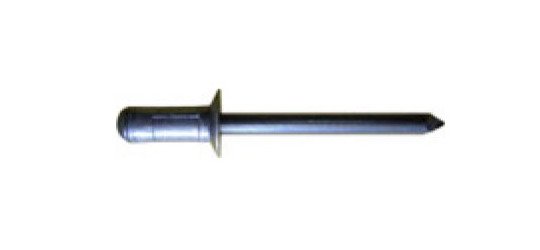

Ornit U-Fix 4.0mm Aluminum Steel Snap Head Rivet
Ornit U-Fix 4.0mm Aluminum Steel Snap Head Rivet
SKU:UFI-38a869
Versatile Ornit U-Fix 4.0mm Aluminum Steel Snap Head Rivet for secure and lasting fastening in main cabin applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit U-Fix 4.0mm Aluminum Steel Snap Head Rivet
$39.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 4.0mm Aluminum Steel Snap Head Rivet
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix 4.0mm Aluminum Steel Snap Head Rivet is a top-tier fastener designed for maximum versatility and multi-grip functionality. Crafted from durable Aluminum Alloy ALmg 2.5 with a natural finish, it offers unparalleled strength and corrosion resistance. Ideal for a wide range of applications in main cabin installations, this rivet ensures secure and long-lasting fastening. With a nominal shear force of 116 kgf and tensile force of 170 kgf, it surpasses industry standards for reliability and performance.
Product Specifications
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
6.2 mm | 0.244 in
Nominal Dimensions Head Thickness
1.35 mm | 0.053 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.83 in | 0.89 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Snap Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
