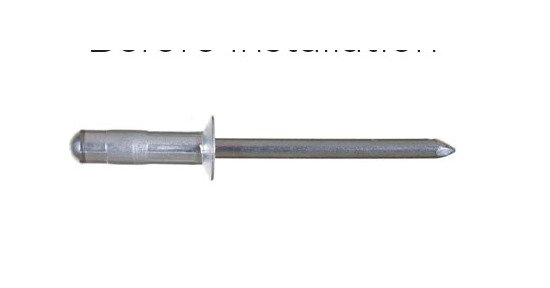

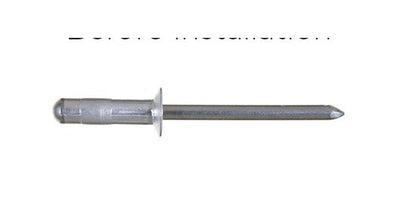

Ornit U-Fix 4.8mm Aluminum/Stainless Steel Rivet
Ornit U-Fix 4.8mm Aluminum/Stainless Steel Rivet
SKU:UFI-21550a
Versatile Ornit U-Fix 4.8mm Aluminum/Stainless Steel Rivet for secure component fastening in automotive and trailer applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornit U-Fix 4.8mm Aluminum/Stainless Steel Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 4.8mm Aluminum/Stainless Steel Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

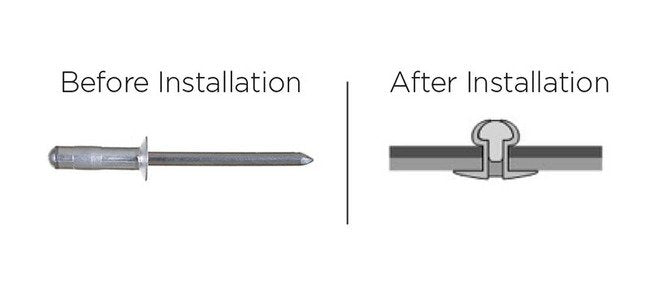

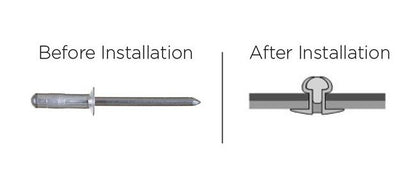

The Ornit U-Fix 4.8mm Aluminum/Stainless Steel Rivet is a durable and versatile fastener designed for various applications in automotive interiors, trailers, and securing rails. It features a 120-degree countersunk head, a strong aluminum alloy body, and a stainless steel mandrel, ensuring excellent multi-grip functionality. With a nominal shear force of 159 kgf and a tensile force of 240 kgf, this rivet offers reliable component securing capabilities. Its compliance with industry standards makes it a trustworthy choice for institutional buyers seeking premium fastening solutions.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
8.8 mm | 0.346 in
Nominal Dimensions Head Thickness
1.35 mm | 0.053 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
120 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
