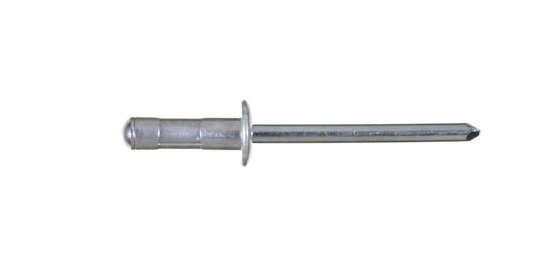

Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
SKU:UFI-012081
Versatile Ornit U-Fix 4.8mm Dome Head Rivets for secure fastening in vehicles, trailers, and cabins. Strong and durable with multi-grip functionality.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
$45.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix Aluminum Steel Dome Head Rivets are purpose-built fasteners designed for a range of applications such as securing components in vehicles, trailers, and cabins. With a 4.8mm diameter and 16.9mm body length, these rivets offer exceptional multi-grip functionality. Crafted from Aluminum Alloy ALmg 2.5 with a Zinc Plated Chromium VI Free finish, they provide strength and durability. With nominal shear force of 159 kgf and tensile force of 240 kgf, these rivets are reliable for various needs.
Product Specifications
Applications Automotive Application
Interior - The U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
