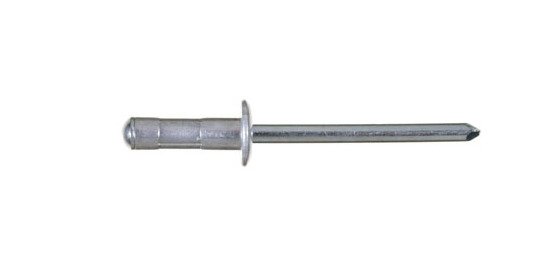

Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
SKU:UFI-df3fb0
Versatile Ornit U-Fix rivets with aluminum steel construction for secure fastening in trailers and vehicles.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
$39.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets are purpose-built fasteners designed for secure and versatile applications in trailers and vehicles. With a sturdy aluminum alloy body and a zinc-plated chromium mandrel, these rivets offer exceptional grip strength ranging from 4.8mm to 11.1mm. Ideal for securing rails, components in vehicles, and various trailer accessories, these rivets meet rigorous standards for durability and reliability.
Product Specifications
Applications Automotive Application
Interior - The U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
15.1 mm | 0.594 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
11.1 mm | 0.437 in
Nominal Dimensions Minimum Grip Range
4.8 mm | 0.189 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
