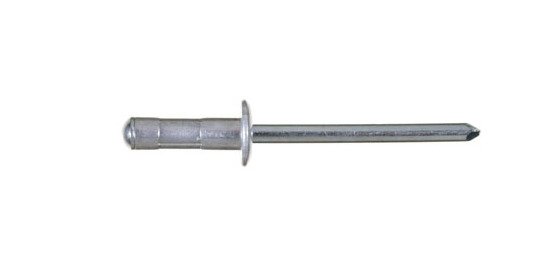

Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
SKU:UFI-fa74e6
Versatile Ornit U-Fix 4.8mm Aluminum Dome Head Rivets for secure multi-grip fastening in various applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
$49.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets are purpose-built fasteners designed to offer exceptional multi-grip functionality, making them perfect for various interior and automotive applications. Made with Aluminum Alloy ALmg 2.5 body material and Zinc Plated Chromium (Cr) VI Free mandrel finish, these rivets provide reliable performance. With a 4.8mm diameter, 27mm body length, and impressive shear and tensile forces, they ensure secure and lasting connections. Ideal for securing rails, components in vehicles, and trailer accessories, these rivets meet stringent industry standards for quality and durability.
Product Specifications
Applications Automotive Application
Interior - The U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
27.0 mm | 10.063 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
21 mm | 0.827 in
Nominal Dimensions Minimum Grip Range
15.0 mm | 0.591 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
