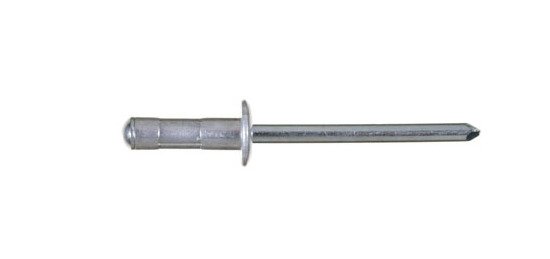

Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
SKU:UFI-84ccf5
Versatile Ornit Aluminum Steel Dome Rivets for secure fastening in automotive & trailer applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
$59.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix 4.8mm Aluminum Steel Dome Head Rivets are precision-engineered fasteners featuring an excellent multi-grip function, making them versatile for various applications. Crafted from Aluminum Alloy ALmg 2.5 with a natural finish, these rivets offer exceptional strength and corrosion resistance. With a secure grip range of 9.0mm to 15.0mm, these rivets provide reliable fastening solutions for automotive and trailer applications. Tested to withstand a nominal shear force of 159 kgf and a tensile force of 240 kgf, these rivets ensure durable connections. Compliant with industry-specific standards and ideal for securing components with precision.
Product Specifications
Applications Automotive Application
Interior - The U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
19.5 mm | 0.768 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
15.0 mm | 0.591 in
Nominal Dimensions Minimum Grip Range
9.0 mm | 0.354 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
