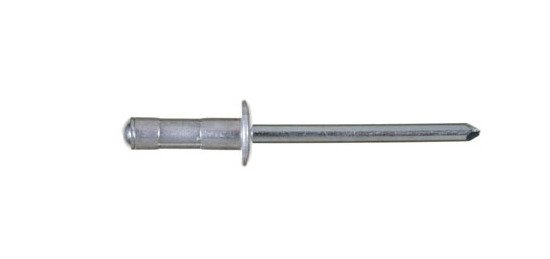

Ornit U-Fix Aluminum Dome Head Rivets 4.8mm x 10.3mm
Ornit U-Fix Aluminum Dome Head Rivets 4.8mm x 10.3mm
SKU:UFI-2be1f0
Durable and versatile Aluminum Dome Head Rivets with superior grip for automotive interiors.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit U-Fix Aluminum Dome Head Rivets 4.8mm x 10.3mm
$45.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Aluminum Dome Head Rivets 4.8mm x 10.3mm
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix Aluminum Dome Head Rivets are engineered for exceptional multi-grip functionality, crafted from durable Aluminum Alloy ALmg 2.5. With a body length of 10.3mm and a 4.8mm diameter, these rivets offer robust shear and tensile forces, making them ideal for interior automotive applications. The low carbon steel mandrel ensures secure fastening, meeting stringent industry standards for quality and reliability.
Product Specifications
Applications Automotive Application
Interior - The U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
10.3 mm | 0.406 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
