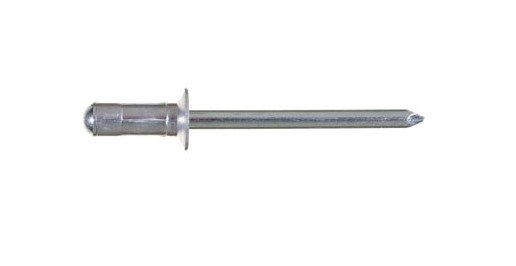

Ornit U-Fix Aluminum Steel 120 Degree Countersunk Head Rivet
Ornit U-Fix Aluminum Steel 120 Degree Countersunk Head Rivet
SKU:UFI-624114
Ornit U-Fix Aluminum Steel Rivet - Premium quality, durable, and strong. Ideal for various applications.
Regular price
$78.99
Regular price
Sale price
$78.99
Unit price
per
Initiate Order
Ornit U-Fix Aluminum Steel 120 Degree Countersunk Head Rivet
$78.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Aluminum Steel 120 Degree Countersunk Head Rivet
$78.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix Aluminum Steel 120 Degree Countersunk Head Rivet is a premium fastening solution designed for durability and strength. Constructed with Aluminum Alloy ALmg 2.5 body and a low carbon steel mandrel, this rivet offers reliability in various applications. With a 3.2mm diameter, 12.7mm body length, and a maximum grip range of 9.5mm, it provides secure fastening with a nominal shear force of 70kgf and nominal tensile force of 93kgf. Meet your fastening needs efficiently with this high-quality rivet from Ornit.
Product Specifications
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
3.2 mm | 1/8 in
Nominal Dimensions Drillhole Size
3.3 mm | 0.130 in
Nominal Dimensions Head Diameter
5.35 mm | 0.211 in
Nominal Dimensions Head Thickness
0.85 mm | 0.033 in
Nominal Dimensions Mandrel Diameter
1.81 mm | 0.071 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
70 kgf | 154 lbf
Nominal Forces Nominal Tensile Force
93 kgf | 204 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
10000
Technical Specs Head Style
Countersunk Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
