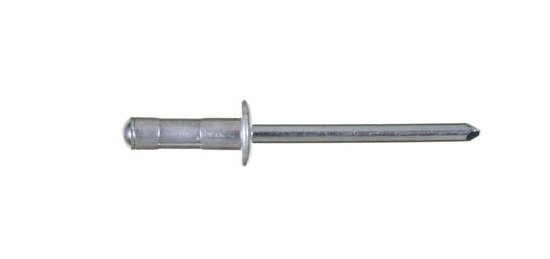

Ornit U-Fix Aluminum Steel Dome Head Rivets
Ornit U-Fix Aluminum Steel Dome Head Rivets
SKU:UFI-53c08d
Versatile Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets for strong and secure fastening in various applications.
Regular price
$58.99
Regular price
Sale price
$58.99
Unit price
per
Initiate Order
Ornit U-Fix Aluminum Steel Dome Head Rivets
$58.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Aluminum Steel Dome Head Rivets
$58.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix 4.0mm Aluminum Steel Dome Head Rivets are expertly crafted for durability and versatility. With a body made of Aluminum Alloy ALmg 2.5 and a Dome Head design, these rivets offer exceptional multi-grip functionality, suitable for a wide range of applications. The low carbon steel mandrel, zinc-plated chromium finish, and precise dimensions ensure reliable performance under various stresses. Engineered to provide a minimum grip range of 4.0mm and a maximum grip range of 9.5mm, these rivets deliver strength with a nominal shear force of 116 kgf and a nominal tensile force of 170 kgf, making them ideal for interior cabin use.
Product Specifications
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.9 mm | 0.311 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.088 in
Nominal Dimensions Maximum Grip Range
9.5 mm | 0.374 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
