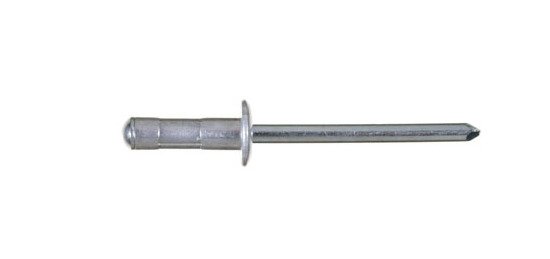

Ornit U-Fix Aluminum Steel Dome Head Rivets - 3.2mm x 11.1mm

Name: Ornit U-Fix Aluminum Steel Dome Head Rivets - 3.2mm x 11.1mm
Brand: Ornit USA
SKU: UFI-eda252
Price: 45.99 USD
Availability: OutOfStock

SKU:UFI-eda252

High-quality Ornit Aluminum Steel Dome Head Rivets for sturdy and reliable fastening. 3.2mm x 11.1mm dimensions.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your riveting with Ornit's U-Fix Aluminum Steel Dome Head Rivets. These rivets feature a 3.2mm diameter and 11.1mm body length, perfect for fastening tasks in various industries. Crafted from Aluminum Alloy ALmg 2.5 with a natural finish, these rivets offer superior strength and corrosion resistance. Meet your fastening needs efficiently with Ornit's high-quality Dome Head Rivets.

Product Specifications

Nominal Dimensions Body Length

11.1 mm | 0.437 in

Nominal Dimensions Diameter

3.2 mm | 1/8 in

Nominal Dimensions Drillhole Size

3.3 mm | 0.130 in

Nominal Dimensions Head Diameter

6.4 mm | 0.252 in

Nominal Dimensions Head Thickness

0.95 mm | 0.037 in

Nominal Dimensions Mandrel Diameter

1.81 mm | 0.071 in

Nominal Dimensions Maximum Grip Range

7.9 mm | 0.311 in

Nominal Dimensions Minimum Grip Range

4.0 mm | 0.157 in

Nominal Forces Nominal Shear Force

75 kgf | 165 lbf

Nominal Forces Nominal Tensile Force

104 kgf | 230 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 2.5

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

10000

Technical Specs Head Style

Dome Head

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel

Ornit U-Fix Aluminum Steel Dome Head Rivets - 3.2mm x 11.1mm
