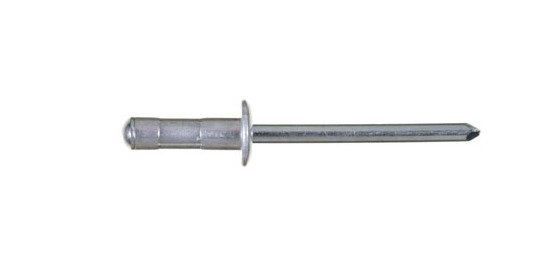

Ornit U-Fix Aluminum Steel Rivets - 4.8mm Dome Head
Ornit U-Fix Aluminum Steel Rivets - 4.8mm Dome Head
SKU:UFI-6bd494
Versatile Ornit U-Fix 4.8mm Dome Head Rivets for secure multi-grip fastening in automotive and trailer applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ornit U-Fix Aluminum Steel Rivets - 4.8mm Dome Head
$39.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Aluminum Steel Rivets - 4.8mm Dome Head
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix Aluminum Steel Dome Head Rivets are purpose-built fasteners with excellent multi-grip functionality, ideal for various applications in automotive interiors and trailer setups. Made of Aluminum Alloy ALmg 2.5 with a natural finish, these rivets offer a secure hold with a minimum grip range of 2.0mm and a maximum grip range of 8.0mm. With a nominal shear force of 159 kgf and a nominal tensile force of 240 kgf, these rivets ensure reliable performance. Suitable for securing rails, components, and accessories, these rivets meet high industry standards for durability and strength.
Product Specifications
Applications Automotive Application
Interior - The U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
12.1 mm | 0.476 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
8.0 mm | 0.315 in
Nominal Dimensions Minimum Grip Range
2.0 mm | 0.079 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
