Ornit U-Fix Aluminum Steel Snap Head Rivet 4.0mm x 11.1mm
Ornit U-Fix Aluminum Steel Snap Head Rivet 4.0mm x 11.1mm
SKU:UFI-0246a6
Versatile Ornit U-Fix rivet for secure and aesthetic fastening in main cabin installations.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit U-Fix Aluminum Steel Snap Head Rivet 4.0mm x 11.1mm
$45.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Aluminum Steel Snap Head Rivet 4.0mm x 11.1mm
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

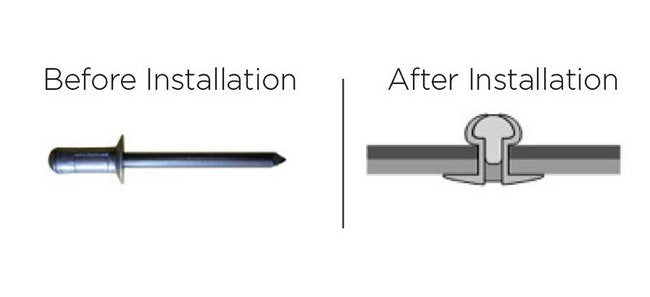

The Ornit U-Fix 4.0mm Diameter Snap Head Rivet is a versatile and robust fastener designed for various applications. Constructed with Aluminum Alloy ALmg 2.5 body and Low Carbon Steel mandrel, it offers exceptional shear and tensile strength. With a grip range of 3.2mm to 7.9mm, it ensures secure fastening. The snap head design and natural finish provide both functionality and aesthetics, making it ideal for main cabin installations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
11.1 mm | 0.437 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
6.2 mm | 0.244 in
Nominal Dimensions Head Thickness
1.35 mm | 0.053 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.83 in | 0.89 in
Nominal Dimensions Maximum Grip Range
7.9 mm | 0.311 in
Nominal Dimensions Minimum Grip Range
3.2 mm | 0.126 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Snap Head
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
