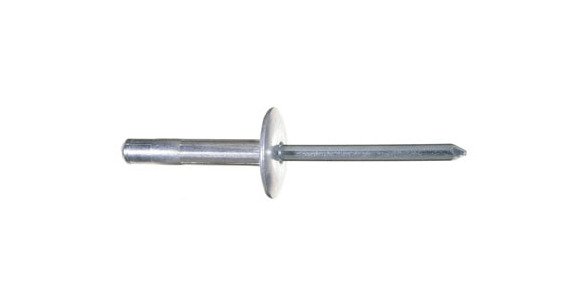

Ornit U-Fix Aluminum Steel X-Large Head Rivet
Ornit U-Fix Aluminum Steel X-Large Head Rivet
SKU:UFI-57023d
Premium Ornit U-Fix Aluminum Rivet for main cabin interior applications. High-quality Aluminum Alloy with extra-large head. Grip range from 6.4mm to 12.7mm. Nominal shear force of 116 kgf and tensile force of 170 kgf.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Ornit U-Fix Aluminum Steel X-Large Head Rivet
$42.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Aluminum Steel X-Large Head Rivet
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix Aluminum Steel X-Large Head Rivet is a top-tier fastening solution designed for interior applications within main cabins. Crafted from high-quality Aluminum Alloy ALmg 2.5, this rivet boasts a natural finish that ensures durability and longevity. With a 4.0mm diameter, 16.9mm body length, and an extra-large head style, it offers exceptional grip ranging from 6.4mm to 12.7mm. Experience superior performance with a nominal shear force of 116 kgf and a nominal tensile force of 170 kgf. Ideal for various uses, this rivet meets stringent industry standards for reliability and efficiency.
Product Specifications
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.5 mm | 0.059 in
Nominal Dimensions Mandrel Diameter
2.25 mm | 0.089 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
116 kgf | 255.2 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
