Ornit U-Fix Aluminum Steel X-Large Head Rivet - Durable Aluminum Alloy Body, Extra Large Head, High Tensile Force, Superior Grip Range

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

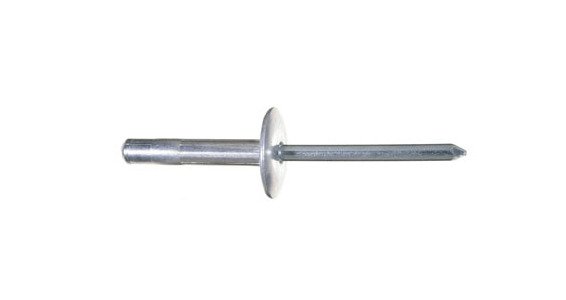

The Ornit U-Fix Aluminum Steel X-Large Head Rivet combines durability and precision, featuring a body made of Aluminum Alloy ALmg 2.5 with a natural finish. The Zinc Plated Chromium VI Free low carbon steel mandrel ensures secure fastening with a nominal tensile force of 230 lbf. With a head style of Extra Large and a body length of 8.0mm, this rivet offers superior grip range between 0.8mm to 4.8mm. Ideal for industrial applications requiring high shear force and compliance with stringent standards.

Product Specifications

Nominal Dimensions Body Length

8.0 mm | 0.315 in

Nominal Dimensions Diameter

3.2 mm | 1/8 in

Nominal Dimensions Drillhole Size

3.3 mm | 0.130 in

Nominal Dimensions Head Diameter

9.5 mm | 0.374 in

Nominal Dimensions Head Thickness

1.20 mm | 0.047 in

Nominal Dimensions Mandrel Diameter

1.81 mm | 0.071 in

Nominal Dimensions Maximum Grip Range

4.8 mm | 0.189 in

Nominal Dimensions Minimum Grip Range

0.8 mm | 0.031 in

Nominal Forces Nominal Shear Force

75 kgf | 165 lbf

Nominal Forces Nominal Tensile Force

104 kgf | 230 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 2.5

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

8000

Technical Specs Head Style

Extra Large

Technical Specs Mandrel Finish

Zinc Plated Chromium (Cr) VI Free

Technical Specs Mandrel Material

Low Carbon Steel
