Ornit U-Fix Aluminum Steel X-Large Head Rivet 4.8mm x 16.9mm
Ornit U-Fix Aluminum Steel X-Large Head Rivet 4.8mm x 16.9mm
SKU:UFI-b0eac6
Versatile Ornit U-Fix Rivet - Strong, Durable, Ideal for Automotive Applications
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ornit U-Fix Aluminum Steel X-Large Head Rivet 4.8mm x 16.9mm
$45.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Aluminum Steel X-Large Head Rivet 4.8mm x 16.9mm
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

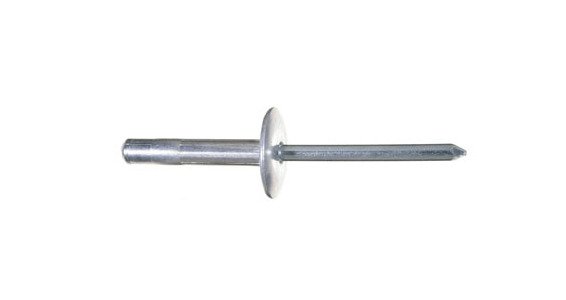

The Ornit U-Fix Aluminum Steel X-Large Head Rivet is a versatile, purpose-built fastener designed for a wide range of applications. Constructed with Aluminum Alloy ALmg 2.5 body material and Zinc Plated Chromium mandrel, this rivet offers exceptional strength and durability. With a nominal shear force of 159 kgf and a nominal tensile force of 240 kgf, it ensures secure fastening. Ideal for automotive interior applications, this rivet provides excellent multi-grip functionality and is recommended for securing rails within trailers. The 4.8mm diameter and 16.9mm body length make it suitable for various needs.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.75 mm | 0.069 in
Nominal Dimensions Mandrel Diameter
2.8 mm | 0.110 in
Nominal Dimensions Maximum Grip Range
12.7 mm | 0.500 in
Nominal Dimensions Minimum Grip Range
6.4 mm | 0.252 in
Nominal Forces Nominal Shear Force
159 kgf | 350 lbf
Nominal Forces Nominal Tensile Force
240 kgf | 528 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
