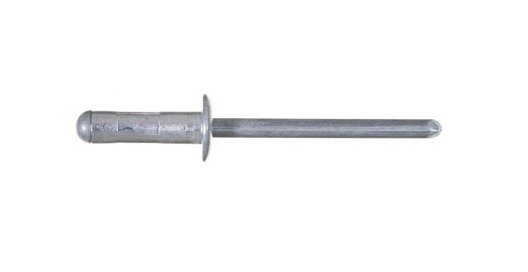

Ornit U-Fix Dome Head Rivet, 4.8mm x 10.3mm
Ornit U-Fix Dome Head Rivet, 4.8mm x 10.3mm
SKU:UFI-718c36
Versatile U-Fix Dome Rivet for secure fastening in automotive and trailer applications. High-strength Aluminum Alloy construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ornit U-Fix Dome Head Rivet, 4.8mm x 10.3mm
$29.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Dome Head Rivet, 4.8mm x 10.3mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix Aluminum/Aluminum Dome Head Rivet is a versatile and durable fastener designed for a range of applications. Constructed with high-quality Aluminum Alloy ALmg 1.0 body material and with a mandrel made of Aluminum Alloy ALmg 5.0, this rivet offers exceptional strength and corrosion resistance. With a nominal shear force of 100 kgf and a tensile force of 150 kgf, it ensures reliable and secure fastening. Ideal for automotive interiors, trailers, and more, this rivet meets stringent industry standards for quality and performance.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
10.3 mm | 0.406 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.45 mm | 0.057 in
Nominal Dimensions Mandrel Diameter
2.91 mm | 0.115 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.6 mm | 0.063 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
150 kgf | 330 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 1.0
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 5.0
