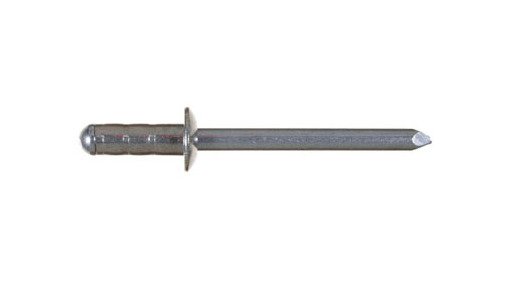

Ornit U-Fix Stainless Steel Dome Head Rivet, 10.3mm Body Length
Ornit U-Fix Stainless Steel Dome Head Rivet, 10.3mm Body Length
SKU:UFI-b26b3a
Secure and durable stainless steel dome head rivet with 10.3mm body length for versatile applications.
Regular price
$22.99
Regular price
Sale price
$22.99
Unit price
per
Initiate Order
Ornit U-Fix Stainless Steel Dome Head Rivet, 10.3mm Body Length
$22.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Stainless Steel Dome Head Rivet, 10.3mm Body Length
$22.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit U-Fix All Stainless Steel Dome Head Rivet ensures secure fastening in a range of applications. With a 10.3mm body length, stainless steel construction, and excellent multi-grip function, this rivet offers superior strength and durability. Perfect for automotive and trailer use, it meets stringent industry standards for reliability and performance.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
10.3 mm | 0.406 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 mm | 0.197 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.85 mm | 0.073 in
Nominal Dimensions Mandrel Diameter
3.38 mm | 0.133 in
Nominal Dimensions Maximum Grip Range
6.0 mm | 0.236 in
Nominal Dimensions Minimum Grip Range
1.5 mm | 0.059 in
Nominal Forces Nominal Shear Force
660 kgf | 1452 lbf
Nominal Forces Nominal Tensile Force
510 kgf | 1122 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Stainless Steel AISI 304
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
