Ornit U-Fix Steel/Steel Rolled Rivets
Ornit U-Fix Steel/Steel Rolled Rivets
SKU:UFI-b32296
Versatile and durable Ornit U-Fix Rivets for secure applications, ideal for interior main cabin settings.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Ornit U-Fix Steel/Steel Rolled Rivets
$59.99
Quantity: 1
Claim Your Seller Account
Ornit U-Fix Steel/Steel Rolled Rivets
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

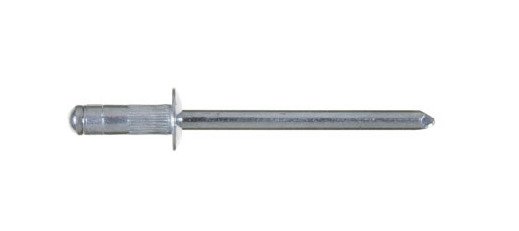

The Ornit U-Fix Special Electro-Fix Steel/Steel Rolled Rivets are a versatile and purpose-built fastening solution designed for applications in interior main cabin settings. With a multi-grip function and durable construction, these rivets offer reliable performance. Featuring technical specifications including a 4.0mm diameter, 240 kgf nominal tensile force, and a body finish of Zinc Plated Chromium (Cr) VI Free, these rivets provide secure and long-lasting fastening solutions for various needs.
Product Specifications
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Length
11.0 mm | 0.433 in
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Diameter
4.0 mm | 5/32 in
Technical Specs Drillhole Size
4.2 mm | 165 in
Technical Specs Head Diameter
8.1 mm | 0.319 in
Technical Specs Head Style
Rolled Rivet
Technical Specs Head Thickness
1.20 mm | 0.047 in
Technical Specs Mandrel Diameter
2.73 mm | 0.107 in
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
Technical Specs Maximum Grip Range
5.0 mm | 0.197 in
Technical Specs Minimum Grip Range
1.4 mm | 0.055 in
Technical Specs Nominal Shear Force
150 kgf | 330 lbf
Technical Specs Nominal Tensile Force
240 kgf | 528 lbf
