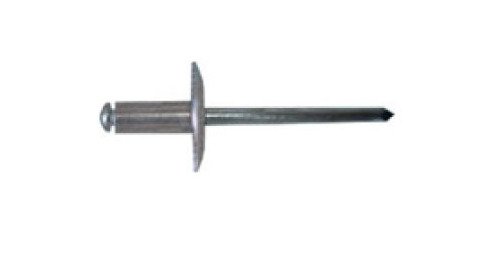

Ornit X-Large Blind Rivet 4.8mm x 20.0mm
Ornit X-Large Blind Rivet 4.8mm x 20.0mm
SKU:OPE-91962f
Durable Ornit X-Large Blind Rivet - Ideal for heavy-duty projects, meets industry standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Ornit X-Large Blind Rivet 4.8mm x 20.0mm
$89.99
Quantity: 1
Claim Your Seller Account
Ornit X-Large Blind Rivet 4.8mm x 20.0mm
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ornit X-Large Blind Rivet features a 4.8mm diameter and 20.0mm body length, making it ideal for heavy-duty applications. Constructed with aluminum alloy body and low carbon steel mandrel, this rivet offers exceptional shear and tensile strength. With a zinc-plated chromium finish, it provides durability and corrosion resistance. Compliant with industry standards, it meets stringent requirements for federal procurement, GSA guidelines, FAR compliance, and DLA standards.
Product Specifications
Nominal Dimensions Body Length
20.0 mm | 0.787 in
Nominal Dimensions Diameter
4.8 mm
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.8 mm | 0.622 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
2.61 mm | 0.103 in
Nominal Dimensions Maximum Grip Range
15.0 mm | 0.591 in
Nominal Dimensions Minimum Grip Range
13.0 mm | 0.512 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
220 kgf | 484 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
2000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
