OTMT Gear Drive Mill/Drill Machine
OTMT Gear Drive Mill/Drill Machine
SKU:DRI-148640
Enhanced stability, precise drilling capabilities, and robust construction make the OTMT Gear Drive Mill/Drill Machine ideal for industrial applications.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
OTMT Gear Drive Mill/Drill Machine
$2,999.99
Quantity: 1
Claim Your Seller Account
OTMT Gear Drive Mill/Drill Machine
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

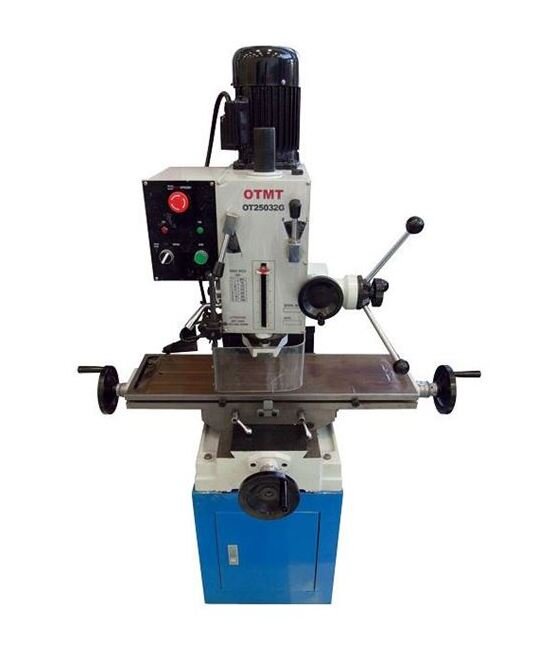

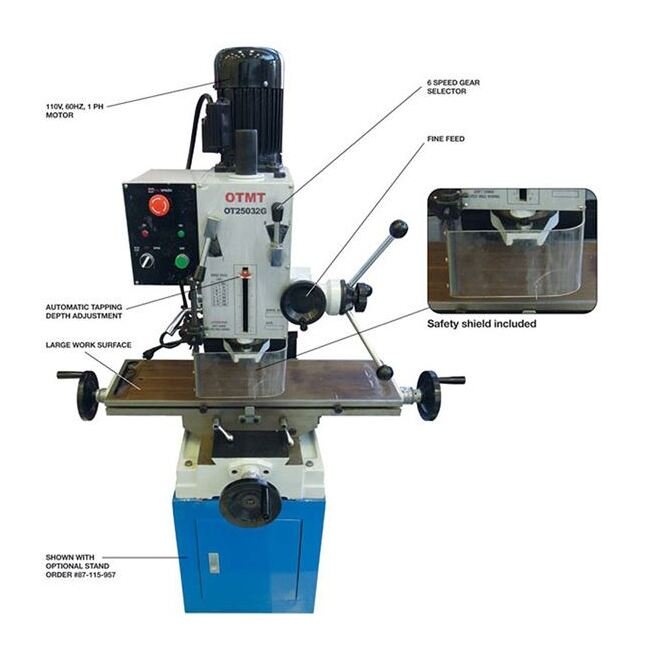

The OTMT Gear Drive Mill/Drill Machine is a robust and versatile solution designed for precise drilling operations even at full capacity. With a wide column for enhanced stability, this machine features an R8 spindle taper, pre-wiring for worklight, and a round column design. It offers a drilling capacity of 1.25 inches in cast iron and 32 inches in mild steel, making it ideal for industrial applications. The machine is powered by a 1 hp engine and equipped with features like a quill diameter of 2.96 inches, spindle speed range from 0 to 2500 rpm, and a sturdy construction to ensure reliable performance.
Product Specifications
Features Features
R8 spindle taperPre-wired for worklightRound column
Includes Includes
DrawbarDrill chuck and arborWrench
Technical Specs Brands
OTMT
Technical Specs Country Of Origin
Import
Technical Specs Distance From Spindle Nose To Table
444.5 mm
Technical Specs Drilling Capacity Cast Iron
1.25 in
Technical Specs Drilling Capacity Mild Steel
32 in
Technical Specs End Milling Capacity
0.78 in | 20 mm
Technical Specs Face Milling Capacity
3.00 in | 76 mm
Technical Specs Headstock Travel
7.08 in
Technical Specs Height
44.88 in
Technical Specs Horsepower
1 hp
Technical Specs Item Number
87-115-930
Technical Specs Length
34.64 in
Technical Specs Machine Type
Mill/Drill
Technical Specs Minimum Distance From Spindle Axis Top Column
7.625 in | 193 mm
Technical Specs Motor Phase
1
Technical Specs Mt3 Distance From Spindle Nose To Table
17.55 in
Technical Specs Overall Height
51 in | 1300 mm
Technical Specs Power Engine
1/2 hp
Technical Specs Quill Diameter
2.96 in
Technical Specs Shipping Restrictions
TRUCK SHIP ONLY(FIXED FREIGHT CHARGE)
Technical Specs Spindle Range
-45 to +45 º
Technical Specs Spindle Speed Range
0 to 2500 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5.11 in | 130 mm

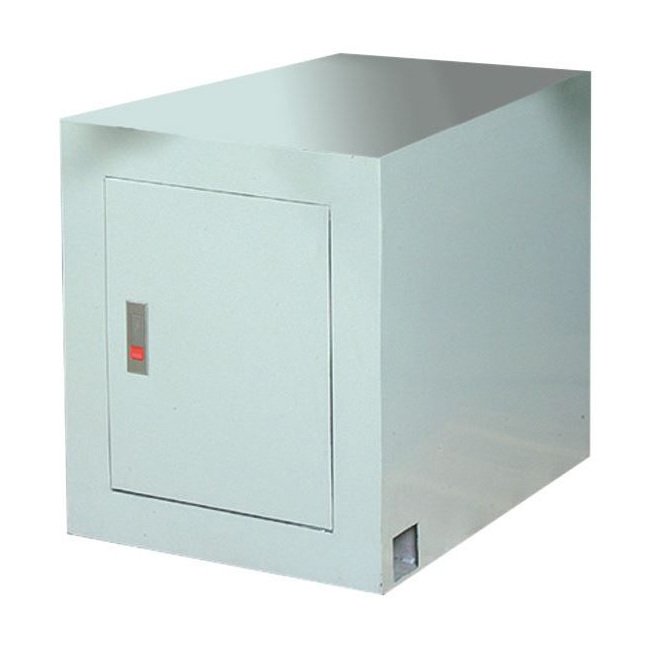

Technical Specs Stand Height
27.56 in
Technical Specs Stand Length
25.19 in
Technical Specs Stand Width
16.54 in
Technical Specs Step Of Spindle
6
Technical Specs Swivel Angle Of Headstock
90 º
Technical Specs Table Dimensions
9.44 x 31.49 in
Technical Specs Table Slots
0.64 in
Technical Specs Travel Of Table Forward Backward
3.93 in | 100 mm
Technical Specs Travel Of Table Right Left
8.66 in | 220 mm
Technical Specs T Slot
0.47 in | 12 mm
Technical Specs Voltage
110 V
Technical Specs Weight
790 lb
Technical Specs Width
30.31 in
