Outdoor 7-Pole Light Gray Female Connector - 20A

Name: Outdoor 7-Pole Light Gray Female Connector - 20A
Brand: Wieland Electric Inc.
SKU: CIR-76a41a
Price: 24.99 USD
Availability: OutOfStock

SKU:CIR-76a41a

Secure outdoor electrical connections with our 7-Pole Light Gray Female Connector. IP69 and Type 4X/6P protection, 250-600V rating. Optional water seals.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

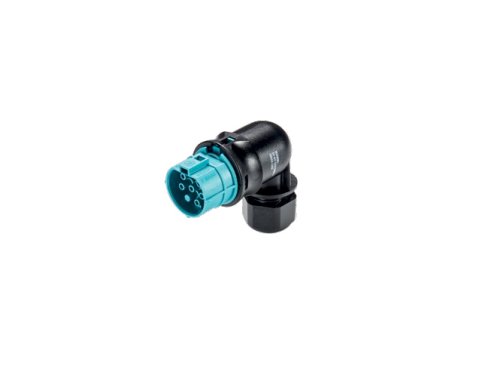

The 7 Poles Light Gray Female Connector is a premium outdoor-rated electrical connector designed for robust performance. With a screw connection type and angled 90º plug, this connector ensures secure and reliable electrical connections. It is rated for a minimum of 250V to a maximum of 600V, meeting both IEC and cULus standards. The IP69 and Type 4X/6P protection make it ideal for outdoor applications, while the optional water seals provide added protection. Trust the Wieland brand for quality and durability.

Product Specifications

Note Note

Optional water seals on individual contacts for added protection when unmated. Contact us for details.Technical details are subject to change

Specifications Angle Of Plug

Angled 90Âº

Specifications Color Of Codingcontact Carrier

Light Gray

Specifications Connection Type

Screw Connection

Specifications Number Of Poles

Specifications Type

Female

Technical Data Current According To Canadian Ul Recognized Unite

3 x 16 A + 4 x 2 A (Canada) (Contact us for Additional Combinations) | 3 x 20 A + 4 x 5 A (USA) (Contact us for Additional Combinations)

Technical Data Current According To International Electrotechnic

3 x 20 A + 4 x 5 A

Technical Data Degree Of Protection According To Canadian Ul Lis

Type 4X/6P

Technical Data Degree Of Protection According To International E

IP69

Technical Data Maximum Cable Diameter

10 mm

Technical Data Maximum Rated Voltage

600 V

Technical Data Minimum Cable Diameter

6 mm

Technical Data Minimum Rated Voltage

250 V | 400 V

Technical Data Wire Size According To Canadian Ul Listed United

20 to 14 AWG

Technical Data Wire Size According To International Electrotechn

0.2 to 1.5 mmÂ²
