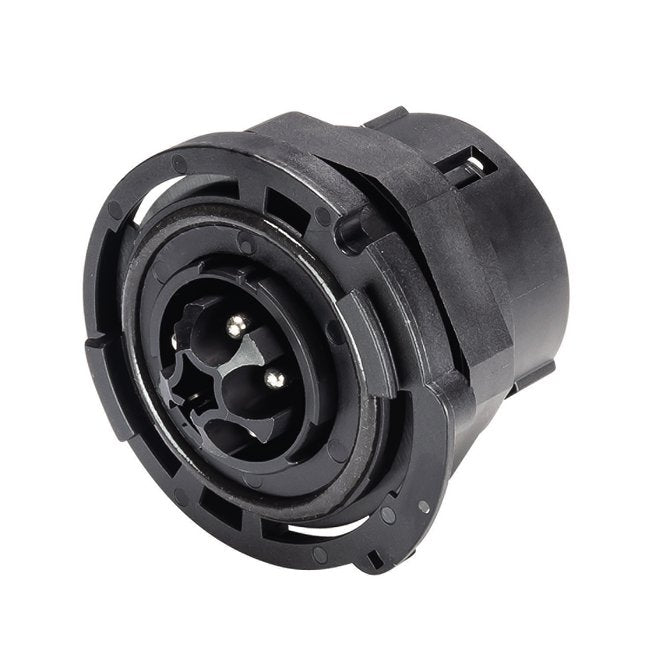

Enhance your outdoor electrical connections with the Wieland RST50i5S S1 M02V SW Male Device / Panel Mount Connectors. Rated for 50A and 600V, these connectors offer a secure screw connection with IP66/IP67/IP69 protection. Made of halogen-free polyamide housing with copper zinc contacts, these connectors ensure safety and durability. Compliant with RoHS and REACH-SVHC standards, they are suitable for a wide range of applications requiring reliable connections.
Product Specifications
Classification Eclass 81 Classification
27440602
Classification Etim 40 Classification
EC002566
Classification Etim 50 Classification
EC002566
Classification Etim 60 Classification
EC002566
Classification Etim 70 Classification
EC002566
Connection Data Maximum Fine Stranded Connection Cross Section
16 mm²
Connection Data Maximum Solid Connection Cross Section
16 mm²
Connection Data Maximum Stranded Connection Cross Section
16 mm²
Connection Data Minimum Fine Stranded Connection Cross Section
4 mm² | 16 AWG
Connection Data Minimum Solid Connection Cross Section
4 mm² | 16 AWG
Connection Data Minimum Stranded Connection Cross Section
4 mm²
Connection Data Terminations Per Pole
1
Connection Data Wire Strip Length
10 mm
Dimensions Height
65 mm
Dimensions Length
56.7 mm
Dimensions Width
65 mm
General Brands
Wieland
General Color Of Codingcontact Carrier
Black
General Color Of Separate Adapter If Present
Black
General Lockable
Yes
General Marking Of Poles
1 | 2 | 3 | N | PE
General Maximum Rated Voltage
600 V
General Model
RST50i5S S1 M02V SW Male
General Number Of Poles
5
General Pollution Degree
3
General Rated Current
50 A
General Rated Impulse Voltage
4 kV
Material Contact Material
Copper Zinc (CuZn)
Material Fire Load
0.507 kW·h
Material Halogen Free
Yes
Material Housing Material
Polyamide
Material Insulation Components Continuous Temperature
80 ºC
Material Surface Finish
Silver-Plated
Model Angle Of Plug
Straight
Model Connecting Thread Metric With Adaptor Ring
M32 | M40
Model Connection Type
Screw Connection
Model Connector Type
Male
Model Degree Of Protection Ip
IP66 | IP67 | IP69
Model Thickness Of Housings Electrical Device
7 mm
Model Thickness Of Housings Electrical Device 2
2 mm
