Oval Brass Internal Thread 10-24, 2" Height
Oval Brass Internal Thread 10-24, 2" Height
SKU:OVA-3e8072
High-quality Oval-Internal Thread in brass, 2" height, 10-24 thread size, compliant with Federal standards.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Oval Brass Internal Thread 10-24, 2" Height
$14.99
Quantity: 1
Claim Your Seller Account
Oval Brass Internal Thread 10-24, 2" Height
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

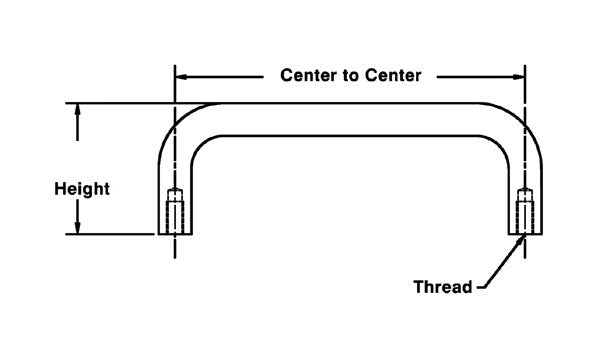

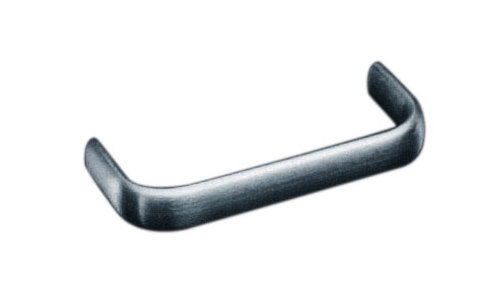

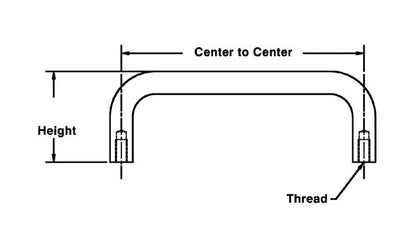

The Oval-Internal Thread offers a unique oval shape with precise dimensions suitable for various applications. Crafted from high-quality brass, it stands at 2 inches tall with a 7.5-inch center-to-center distance, and a thread size of 10-24. The .6250 x .28125 inch diameter and 0.3750 inch thread depth ensure secure fastening. Compliant with Federal/DoD procurement standards and FAR regulations, this product meets the stringent requirements for quality and performance.
Product Specifications
Specifications C To C In
7.5
Specifications C To C Mm
190.5
Specifications Diameter In
.6250 x .28125
Specifications Diameter Mm
15.88 x 7.14
Specifications Material
Brass
Specifications Overall Height In
2
Specifications Overall Height Mm
50.8
Specifications Shape
Oval
Specifications Thread Depth In
0.3750
Specifications Thread Depth Mm
9.53
Specifications Thread Size
10-24
