Oval Eye Swivel Socket Fitting (Non-Bearing) for Cable Railings

Name: Oval Eye Swivel Socket Fitting (Non-Bearing) for Cable Railings
Brand: Lexco Cable Manufacturing
SKU: ARC-428b68
Price: 24.99 USD
Availability: OutOfStock

SKU:ARC-428b68

Durable Oval Eye Swivel Fitting for cable railings, self-colored steel, 7/8" Rope Size, suitable for consumer and institutional use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Oval Eye Swivel Socket Fitting (Non-Bearing) is a vital component for cable railings, specifically designed for wire rope or aircraft cable installations. Crafted from self-colored steel, this fitting ensures durability and strength. With dimensions tailored for architectural precision, including a Rope Size of 7/8" and an IPS Breaking Strength of 69,200#, this fitting excels in linear applications. Compliant with industry standards, this fitting guarantees security and reliability for your railing projects, suitable for both consumer and institutional buyers.

Product Specifications

Additional Information About Breaking Strength 0

Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

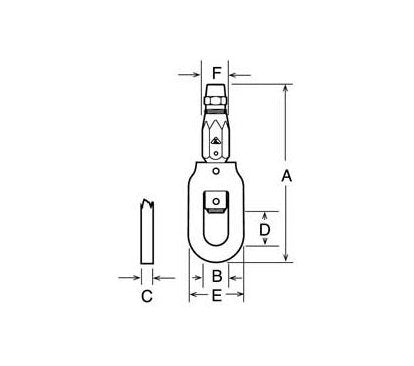

Specifications Dimensions F

2-5/8 "

Specifications Dim A

13-1/2 "

Specifications Dim B

1-7/8 "

Specifications Dim C

1-3/4 "

Specifications Dim D

3-1/4 "

Specifications Dim E

3-5/8 "

Specifications Ips Breaking Strength

69,200#

Specifications Material Finish

Self-Colored Steel

Specifications Rope Size

7/8 "

CAGE

0T9L4

NAICS

332999

PSC

5340

Oval Eye Swivel Socket Fitting (Non-Bearing) for Cable Railings
