Oval Front-Mounting Aluminum Handle - QV Series
Oval Front-Mounting Aluminum Handle - QV Series
SKU:OVA-421551
Durable Oval Front-Mounting Aluminum Handle from the QV Series, RoHS compliant, with precise dimensions. Ideal for various applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Oval Front-Mounting Aluminum Handle - QV Series
$24.99
Quantity: 1
Claim Your Seller Account
Oval Front-Mounting Aluminum Handle - QV Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Oval Front-Mounting Aluminum Handle from the QV Series is crafted from high-grade 6000 series Aluminum, ensuring durability and strength. Available in Anodize or Epoxy finishes, this handle features precise dimensions of 5.000" (A) x 2.000" (B) with a slim profile of .50" (C) x .79" (D). Its design includes a dia 13/64 clearance, ideal for #10 screws. RoHS compliant, this handle offers both functionality and compliance for a wide range of applications.
Product Specifications
Specifications Dimension A In
5.000
Specifications Dimension B In
2.000
Specifications Dimension C
.50 Inch
Specifications Dimension D
.79
Specifications Dimension E
dia 13/64 clearance for #10;

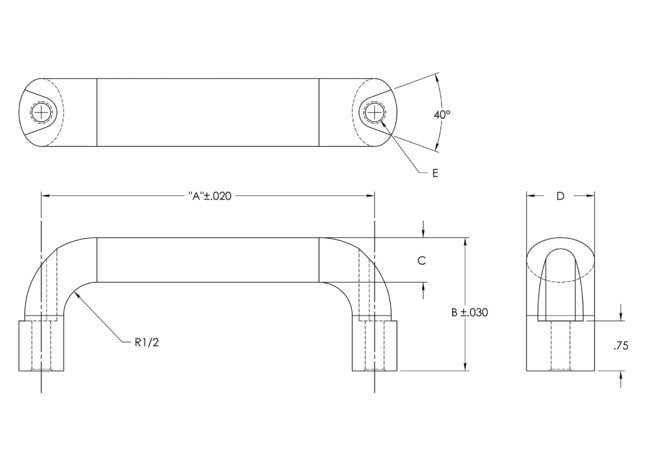

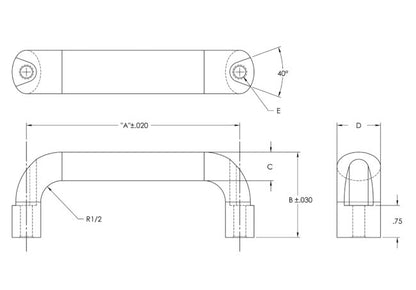

Specifications Line Drawing
Line Drawing
