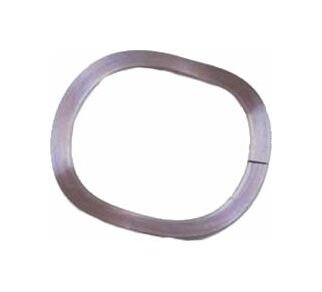

Overlap Wave Washer with High Carbon Material
Overlap Wave Washer with High Carbon Material
SKU:SPR-a2d4f9
Versatile Overlap Wave Washer with High Carbon material for various applications, enabling smooth compression in tight spaces.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Overlap Wave Washer with High Carbon Material
$12.99
Quantity: 1
Claim Your Seller Account
Overlap Wave Washer with High Carbon Material
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Overlap Wave Washer with High Carbon material (C 1060-1075 / SWRH72A) is a versatile flat spring designed for various applications including fastening, pushbutton mechanisms, and slip clutches. With dimensions of 2.756" in height, 0.170" in depth and width, and a thickness of 0.76", this wave washer boasts advanced features. Its unique design allows for up to 50% reduction in spring height, fitting into tight axial and radial spaces effortlessly. The ability to slide across itself enables compression without galling, ensuring smooth operation. Designed with 4 waves, a minimum ID of 59.17 Inches, and a maximum OD of 70.00 Inches, this wave washer is a dependable component for demanding industrial environments.
Product Specifications
Specifications Application Uses
Fastening, Pushbutton, Slip Clutch, etc.
Specifications Country Of Origin
-
Specifications Depth
0.170 Inch
Specifications Featuresadvantagesbenefits
Enables the spring height to be reduced by as much as 50%, fits in tighter axial and radial locations, slides across itself allowing compression with no galling of the bore in which it is installed
Specifications Free Height Approx In
4.32 Inch
Specifications Height
2.756 Inch
Specifications Loaded Height In
2.77 Inch
Specifications Material
High Carbon, C 1060-1075 / SWRH72A
Specifications Maximum Od In
70.00 Inch
Specifications Minimum Id In
59.17 Inch
Specifications Of Waves
4
Specifications Thickness In
0.76 Inch
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.047277 Pound
Specifications Width
0.170 Inch
