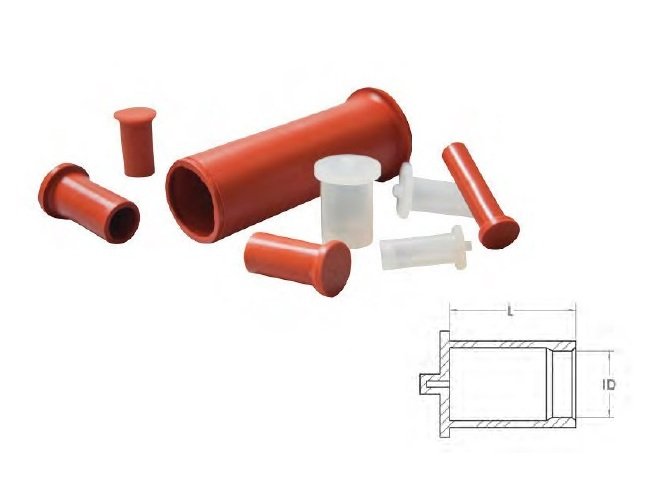

Oversized Silicone Cap - 1.288" ID, 4.128" L - Box of 50
Oversized Silicone Cap - 1.288" ID, 4.128" L - Box of 50
SKU:OVE-ee0ffc
High-temp oversized silicone cap for industrial use, ideal for threaded and non-threaded studs. Box of 50.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Oversized Silicone Cap - 1.288" ID, 4.128" L - Box of 50
$59.99
Quantity: 1
Claim Your Seller Account
Oversized Silicone Cap - 1.288" ID, 4.128" L - Box of 50
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The OSC1288-4128 Oversized Silicone Cap is designed for industrial applications requiring a tight seal. With an inner diameter of 1.288 inches and a length of 4.128 inches, this cap is ideal for longer or wider threaded and non-threaded studs. It features a high temperature rating of 600°F/315°C, making it suitable for various finishing processes like powder coating, e-coating, wet painting, anodizing, and plating. The internal ridge ensures a secure fit, and it can be vented to prevent movement due to pressure build-up. Reusable and easy to place and remove, this cap is a reliable solution for masking purposes. Size selection tip: Choose an ID at least 10% smaller than the OD of the part to be masked.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Features
Temperature Rating 600 °F/315 °C Ideal for Longer or Wider Threaded and Non-Threaded Studs Easier to Place and Remove than Standard Caps Internal Ridge Provides Tight Seal Can be Vented to Eliminate Movement from Pressure Build-up (Do Not Immerse if Vented) Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating Size Selection Tip- Select Inner Diameter (ID) at least 10% Smaller than Outer Diameter (OD) of Part being Masked.
Specifications Inner Diameter Id
1.288 Inch | 32.72 mm
Specifications Length
4.128 Inch | 104.85 mm
Specifications Quantitybox
50
