Oversized Silicone Cap for Longer Studs - Temperature Rating 600°F
Oversized Silicone Cap for Longer Studs - Temperature Rating 600°F
SKU:OVE-420d0f
Versatile oversized silicone cap for longer studs, with tight seal and venting capability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Oversized Silicone Cap for Longer Studs - Temperature Rating 600°F
$24.99
Quantity: 1
Claim Your Seller Account
Oversized Silicone Cap for Longer Studs - Temperature Rating 600°F
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

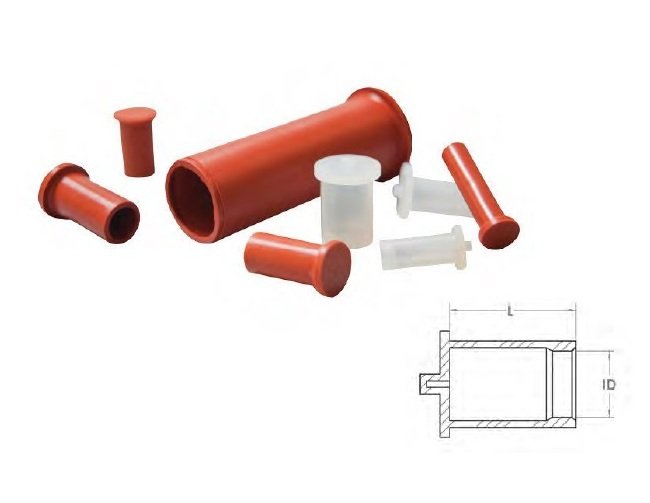

The OSC0157-1180 Oversized Silicone Cap is a versatile solution designed for longer or wider threaded and non-threaded studs in various applications such as powder coating, e-coating, wet painting, anodizing, and plating. With an inner diameter of 0.157 inches and a length of 1.180 inches, this cap offers a tight seal with an internal ridge and can be vented to prevent movement from pressure build-up. Not only is it reusable, but it also provides ease of use with its removal and placement, outperforming standard caps. Selecting an inner diameter at least 10% smaller than the outer diameter of the part being masked ensures optimal performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Features
Temperature Rating 600 °F/315 °C Ideal for Longer or Wider Threaded and Non-Threaded Studs Easier to Place and Remove than Standard Caps Internal Ridge Provides Tight Seal Can be Vented to Eliminate Movement from Pressure Build-up (Do Not Immerse if Vented) Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating Size Selection Tip- Select Inner Diameter (ID) at least 10% Smaller than Outer Diameter (OD) of Part being Masked.
Specifications Inner Diameter Id
0.157 Inch | 4.00 mm
Specifications Length
1.180 Inch | 29.97 mm
Specifications Quantitybox
500
