Oversized Silicone Cap for Threaded and Non-Threaded Studs
Oversized Silicone Cap for Threaded and Non-Threaded Studs
SKU:OVE-d116da
Efficiently mask longer or wider threaded and non-threaded studs with the high-temp OSC0236-1180 Silicone Cap. Ideal for industrial coatings and plating processes.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Oversized Silicone Cap for Threaded and Non-Threaded Studs
$59.99
Quantity: 1
Claim Your Seller Account
Oversized Silicone Cap for Threaded and Non-Threaded Studs
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

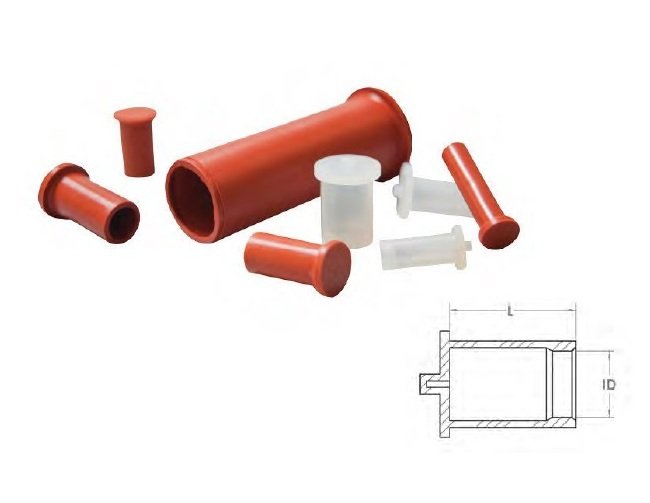

The OSC0236-1180 Oversized Silicone Cap is designed to meet the demanding needs of longer or wider threaded and non-threaded studs. With an Inner Diameter (ID) of 0.236 Inch and a Length of 1.180 Inch, this cap offers a secure, tight seal thanks to its internal ridge. Its high temperature rating of 600°F/315°C makes it ideal for various industrial processes such as Powder Coating, E-Coating, Wet Painting, Anodizing, and Plating. The cap can also be vented to prevent movement due to pressure build-up. Reusable and easy to place and remove, this cap ensures efficient masking during surface finishing applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Features
Temperature Rating 600 °F/315 °C Ideal for Longer or Wider Threaded and Non-Threaded Studs Easier to Place and Remove than Standard Caps Internal Ridge Provides Tight Seal Can be Vented to Eliminate Movement from Pressure Build-up (Do Not Immerse if Vented) Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating Size Selection Tip- Select Inner Diameter (ID) at least 10% Smaller than Outer Diameter (OD) of Part being Masked.
Specifications Inner Diameter Id
0.236 Inch | 5.99 mm
Specifications Length
1.180 Inch | 29.97 mm
Specifications Quantitybox
500
