Oversized Silicone Cap for Threaded Studs - 0.255" ID, 1.180" Length
Oversized Silicone Cap for Threaded Studs - 0.255" ID, 1.180" Length
SKU:OVE-2c2d80
Premium oversized silicone cap for threaded studs, 0.255" ID, 1.180" length, with high-temp rating & tight seal.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Oversized Silicone Cap for Threaded Studs - 0.255" ID, 1.180" Length
$39.99
Quantity: 1
Claim Your Seller Account
Oversized Silicone Cap for Threaded Studs - 0.255" ID, 1.180" Length
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

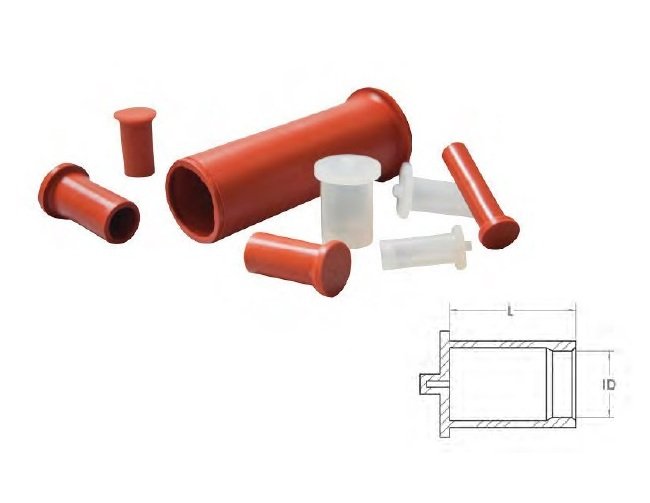

The OSC0255-1180 Oversized Silicone Cap is a top-tier solution for masking applications in industries requiring precision and durability. With an inner diameter of 0.255 inches and a length of 1.180 inches, this cap is designed for longer or wider threaded and non-threaded studs. Its temperature rating of 600°F/315°C ensures reliable performance in high-heat processes like powder coating, E-coating, wet painting, anodizing, and plating. Featuring a unique internal ridge for a tight seal and the option to be vented for pressure release, this cap offers superior protection and ease of use. Reusable and easy to place and remove, it ensures efficient masking operations while meeting stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Features
Temperature Rating 600 °F/315 °C Ideal for Longer or Wider Threaded and Non-Threaded Studs Easier to Place and Remove than Standard Caps Internal Ridge Provides Tight Seal Can be Vented to Eliminate Movement from Pressure Build-up (Do Not Immerse if Vented) Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating Size Selection Tip- Select Inner Diameter (ID) at least 10% Smaller than Outer Diameter (OD) of Part being Masked.
Specifications Inner Diameter Id
0.255 Inch | 6.48 mm
Specifications Length
1.180 Inch | 29.97 mm
Specifications Quantitybox
500
