Oversized Silicone Cap for Wide Threaded Studs - 0.485" ID x 1.013" L
Oversized Silicone Cap for Wide Threaded Studs - 0.485" ID x 1.013" L
SKU:OVE-318303
High-temp oversized silicone cap for wide threaded/non-threaded studs. Ideal for industrial masking applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Oversized Silicone Cap for Wide Threaded Studs - 0.485" ID x 1.013" L
$39.99
Quantity: 1
Claim Your Seller Account
Oversized Silicone Cap for Wide Threaded Studs - 0.485" ID x 1.013" L
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

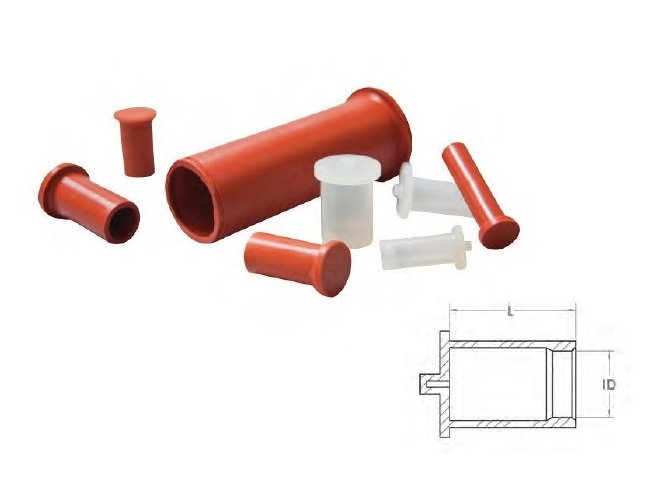

The OSC0485-1013 Oversized Silicone Cap is designed for superior masking performance in industrial applications. With an Inner Diameter of 0.485 inches and a Length of 1.013 inches, this cap accommodates longer or wider threaded and non-threaded studs with ease. Featuring a high temperature rating of 600°F/315°C, it is ideal for use in powder coating, E-coating, wet painting, anodizing, and plating processes. The internal ridge ensures a tight seal, while the venting option prevents movement due to pressure build-up. Reusable and easy to place and remove, this cap is a reliable solution for your masking needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Features
Temperature Rating 600 °F/315 °C Ideal for Longer or Wider Threaded and Non-Threaded Studs Easier to Place and Remove than Standard Caps Internal Ridge Provides Tight Seal Can be Vented to Eliminate Movement from Pressure Build-up (Do Not Immerse if Vented) Reusable Used in Powder Coating, E-Coating, Wet Painting, Anodizing and Plating Size Selection Tip- Select Inner Diameter (ID) at least 10% Smaller than Outer Diameter (OD) of Part being Masked.
Specifications Inner Diameter Id
0.485 Inch | 12.32 mm
Specifications Length
1.013 Inch | 25.73 mm
Specifications Quantitybox
250
