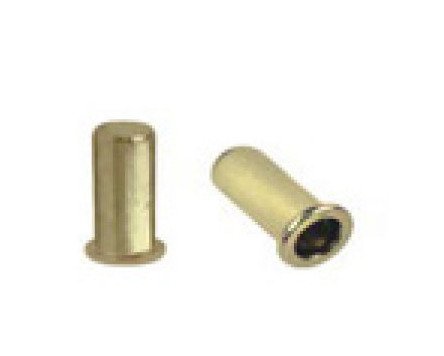

P-Series M10 Open End Cylindrical Head Rivet Nut 24.0mm

Name: P-Series M10 Open End Cylindrical Head Rivet Nut 24.0mm
Brand: Ornit USA
SKU: PSE-3d9eae
Price: 29.99 USD
Availability: OutOfStock

SKU:PSE-3d9eae

High-quality P-Series M10 Cylindrical Head Rivet Nut with versatile grip range & steel construction.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The P-Series 24.0mm Dimension L and M10 Thread Size Open End Cylindrical Head Rivet Nut boasts superior quality with steel construction and a yellow zinc plated finish. Designed for maximum grip ranging from 1.0mm to 2.5mm, this rivet nut is precision-engineered for durability and reliability. Compatible with a 13.1mm hole size, it offers versatility and strength for a wide range of applications. Options for stainless steel and aluminum materials are available, along with serration style customization.

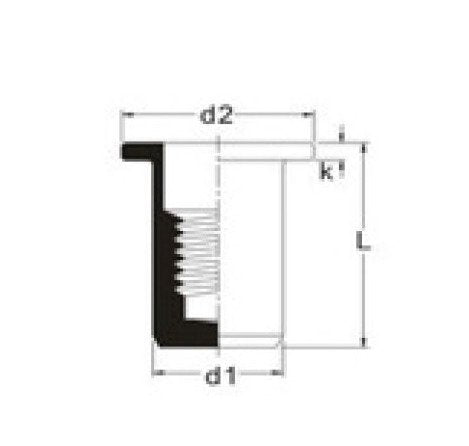

Product Specifications

Dimensions Dimension D1

13.0 mm

Dimensions Dimension D2

16.0 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

24.0 mm

Dimensions Hole Size

13.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

M10

P-Series M10 Open End Cylindrical Head Rivet Nut 24.0mm
