P-Series M4 Rivet Nut - 11.5mm CSK Head

Name: P-Series M4 Rivet Nut - 11.5mm CSK Head
Brand: Ornit USA
SKU: PSE-31e699
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-31e699

Explore the versatile P-Series M4 Rivet Nut for secure, flush fastening in industrial projects. Steel construction with yellow zinc plating.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

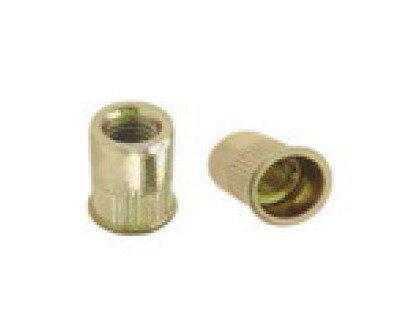

The P-Series M4 Rivet Nut features a sturdy steel construction with a yellow zinc plated finish, suitable for various applications. With a thread size of M4 and an 11.5mm dimension L, this rivet nut offers a secure grip range of 1.5mm to 2.5mm. The countersunk head design ensures a flush fit, while options for stainless steel and aluminum materials are available for specific requirements. Ideal for industrial projects requiring precision fastening solutions.

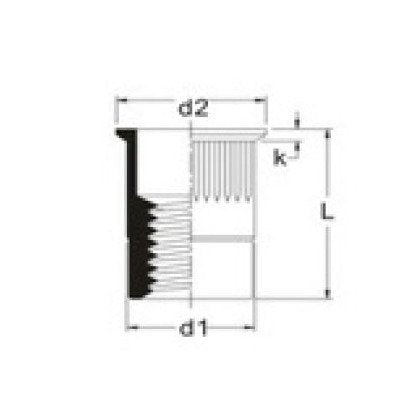

Product Specifications

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

7.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

11.5 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M4 Rivet Nut - 11.5mm CSK Head
