P-Series M4 Thread Flat Rivet Nut, 16.5mm
P-Series M4 Thread Flat Rivet Nut, 16.5mm
SKU:PSE-a41cb8
High-quality P-Series M4 Thread Rivet Nut for secure fastening in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
P-Series M4 Thread Flat Rivet Nut, 16.5mm
$24.99
Quantity: 1
Claim Your Seller Account
P-Series M4 Thread Flat Rivet Nut, 16.5mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

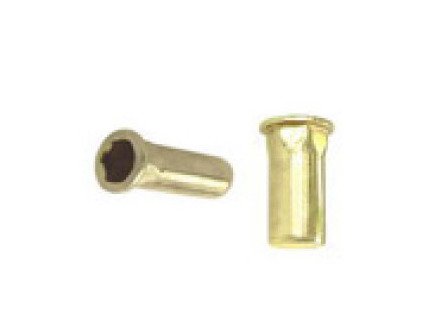

The P-Series 16.5mm Dimension L and M4 Thread Size Open End Cylindrical Head Rivet Nut is a high-quality fastening solution suitable for various applications. Constructed from durable steel with a yellow zinc plated finish, it offers reliable grip ranging from 0.5mm to 2.5mm. The flat cylindrical head design ensures a secure and flush fit, while options for stainless steel and aluminum materials are available for enhanced versatility. With precision dimensions and serration style variations, this rivet nut meets stringent quality standards for industrial and institutional procurement needs.
Product Specifications

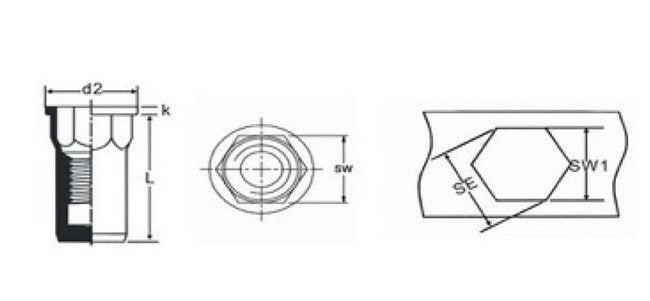

Dimensions Dimension D2
9.3 mm
Dimensions Dimension K
1.0
Dimensions Dimension L
16.5 mm
Dimensions Dimension Se
6.8 mm
Dimensions Dimension Sw
6.0 mm
Dimensions Dimension Sw1
6.1 mm
Dimensions Maximum Grip Range
2.5 mm
Dimensions Minimum Grip Range
0.5 mm
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Cylindrical Head (Flat)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Thread Size
M4
