P-Series M4 Thread Open End CSK Rivet Nut - 12.5mm L

Name: P-Series M4 Thread Open End CSK Rivet Nut - 12.5mm L
Brand: Ornit USA
SKU: PSE-d661c6
Price: 10.99 USD
Availability: OutOfStock

SKU:PSE-d661c6

Durable P-Series M4 Thread Rivet Nut - Ideal for Secure Fastening

$10.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

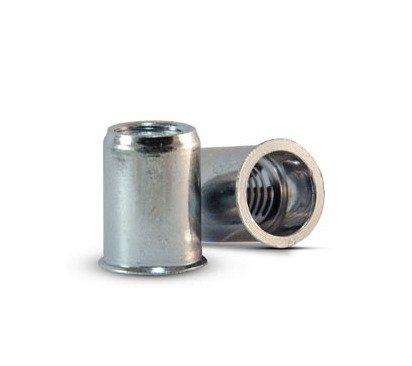

The P-Series 12.5mm Dimension L and M4 Thread Size Open End Countersunk Head (CSK) Rivet Nut by Ornit is a high-quality rivet nut ideal for a wide range of applications. Constructed from durable steel with a yellow zinc plated finish, this rivet nut offers excellent corrosion resistance. With a head style of Countersunk Head (CSK) and precise dimensions, including a hole size of 6.1mm and a grip range of 2.5 to 3.5mm, this rivet nut ensures secure and reliable fastening. Additionally, stainless steel and aluminum options are available, catering to various project requirements.

Product Specifications

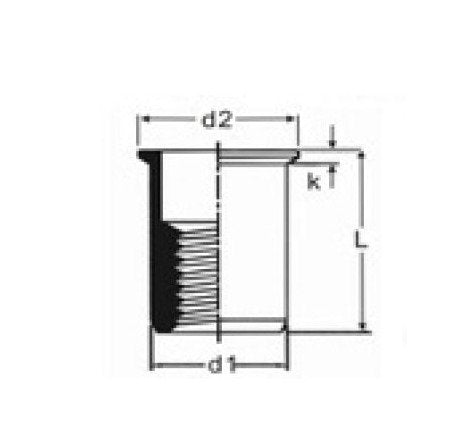

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

7.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

12.5 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

3.5 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M4 Thread Open End CSK Rivet Nut - 12.5mm L
