P-Series M4 Thread Open End Cylindrical Head Rivet Nut - 13.0mm

Name: P-Series M4 Thread Open End Cylindrical Head Rivet Nut - 13.0mm
Brand: Ornit USA
SKU: PSE-f683e4
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-f683e4

Premium P-Series 13.0mm Rivet Nut - Steel with Yellow Zinc Plating, M4 Thread, Open End, Cylindrical Head. Versatile and durable choice.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior fastening with the P-Series Open End Cylindrical Head Rivet Nut. Crafted from durable steel with a yellow zinc plated finish, this rivet nut features precise dimensions including a 13.0mm length and M4 thread size. With a grip range of 2.5mm to 3.5mm and compatibility with 6.1mm holes, this rivet nut ensures secure fastening in various applications. Choose from stainless steel or aluminum options and serrated style for added versatility.

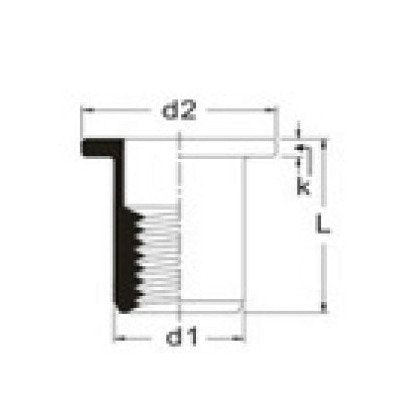

Product Specifications

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

9.3 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

13.0 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

3.5 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M4 Thread Open End Cylindrical Head Rivet Nut - 13.0mm
