P-Series M4 Thread Open End Rivet Nut, 14.5mm L, Cylindrical Head

Name: P-Series M4 Thread Open End Rivet Nut, 14.5mm L, Cylindrical Head
Brand: Ornit USA
SKU: PSE-b7efa1
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-b7efa1

High-quality P-Series M4 Thread Rivet Nut for secure fastening in various applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

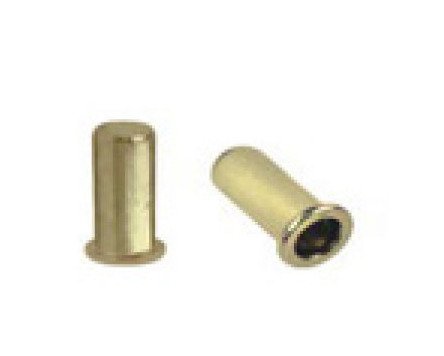

The P-Series 14.5mm Dimension L and M4 Thread Size Open End Cylindrical Head Rivet Nut by Ornit is a reliable fastening solution for a wide range of applications. Made of steel with a durable yellow zinc plated finish, this rivet nut offers secure fastening with a minimum grip range of 0.5mm and a maximum grip range of 1.5mm. With dimensions carefully designed for precise installation (Hole Size: 6.1mm, d1: 6.0mm, d2: 9.0mm), this rivet nut is also available in stainless steel and aluminum options. Upgrade to the P-Series for superior performance and durability.

Product Specifications

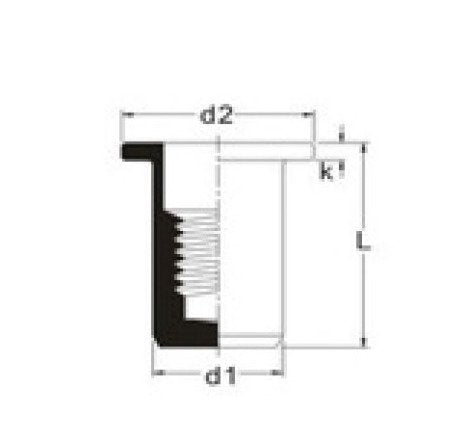

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

9.0 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

14.5 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M4 Thread Open End Rivet Nut, 14.5mm L, Cylindrical Head
