P-Series M5 Open End CSK Rivet Nut

Name: P-Series M5 Open End CSK Rivet Nut
Brand: Ornit USA
SKU: PSE-c02f67
Price: 15.99 USD
Availability: OutOfStock

SKU:PSE-c02f67

Secure and durable P-Series M5 Rivet Nut for reliable fastening in diverse applications.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

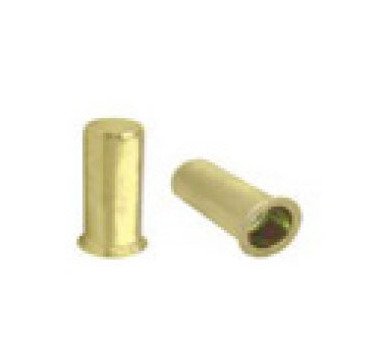

The P-Series 16.5mm Dimension L and M5 Thread Size Open End Countersunk Head (CSK) Rivet Nut by Ornit is a top-quality rivet nut designed for secure fastening in various applications. Made of durable steel with a yellow zinc plated finish, this rivet nut offers reliability and corrosion resistance. With a grip range from 0.5mm to 1.5mm, a hole size of 7.1mm, and available in stainless steel & aluminum options, it caters to diverse needs. This rivet nut ensures easy installation and provides a strong, lasting hold.

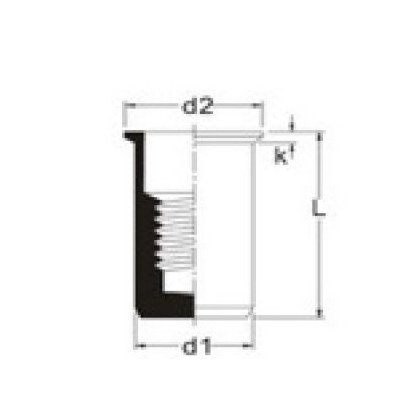

Product Specifications

Dimensions Dimension D1

7.0 mm

Dimensions Dimension D2

8.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

16.5 mm

Dimensions Hole Size

7.1 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M5 Open End CSK Rivet Nut
