P-Series M5 Open End CSK Rivet Nut - 13.0mm

Name: P-Series M5 Open End CSK Rivet Nut - 13.0mm
Brand: Ornit USA
SKU: PSE-f8d418
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-f8d418

High-quality P-Series 13.0mm CSK Rivet Nut - M5 Thread, steel with yellow zinc plating, versatile grip range.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

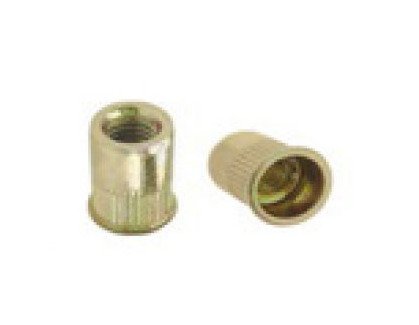

The P-Series 13.0mm Open End Countersunk Head (CSK) Rivet Nut with M5 Thread Size is designed for secure fastening in a range of materials. Made of steel with yellow zinc plating, this rivet nut offers durability and corrosion resistance. Its precise dimensions ensure a grip range of 2.5mm to 3.5mm, suitable for various applications. Available in stainless steel and aluminum options with serration style choices. Trust Ornit's quality for sturdy and reliable riveting solutions.

Product Specifications

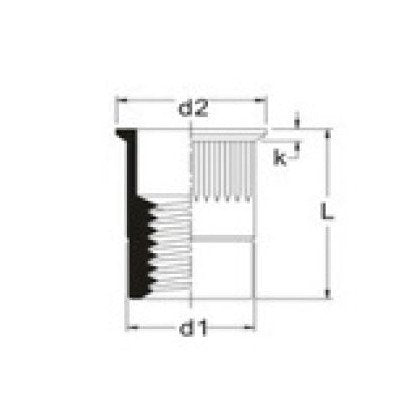

Dimensions Dimension D1

7.0 mm

Dimensions Dimension D2

8.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

13.0 mm

Dimensions Hole Size

7.1 mm

Dimensions Maximum Grip Range

3.5 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M5 Open End CSK Rivet Nut - 13.0mm
