P-Series M5 Open End Flat Head Rivet Nut - 18.5mm

Name: P-Series M5 Open End Flat Head Rivet Nut - 18.5mm
Brand: Ornit USA
SKU: PSE-f8e315
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-f8e315

High-quality P-Series M5 Rivet Nut - 18.5mm: Steel with Yellow Zinc Plating, Ideal for Various Fastening Applications

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

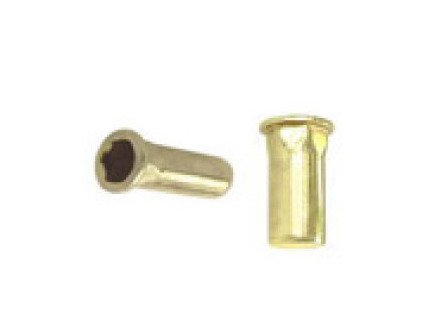

The P-Series 18.5mm Dimension L and M5 Thread Size Open End Cylindrical Head (Flat) Rivet Nut is a high-quality fastener designed for secure and efficient fastening applications. Made from durable steel with a yellow zinc plated finish, this rivet nut offers excellent corrosion resistance and long-lasting performance. With a grip range of 0.5mm to 3.0mm, it provides versatility in fastening various materials. The cylindrical head design ensures a flush surface fit, making it ideal for applications requiring a flat head rivet nut.

Product Specifications

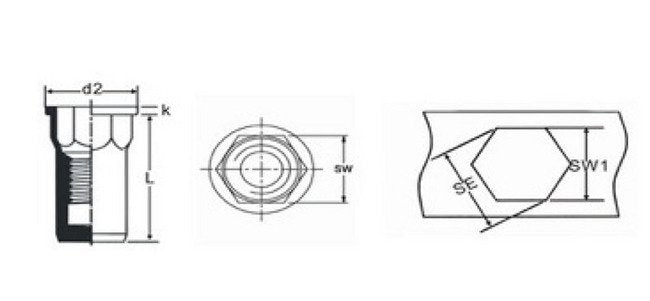

Dimensions Dimension D2

10.3 mm

Dimensions Dimension K

1.0

Dimensions Dimension L

18.5 mm

Dimensions Dimension Se

7.9 mm

Dimensions Dimension Sw

7.0 mm

Dimensions Dimension Sw1

7.1 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M5 Open End Flat Head Rivet Nut - 18.5mm
