P-Series M5 x 17.0mm Cylindrical Head (Flat) Rivet Nut

Name: P-Series M5 x 17.0mm Cylindrical Head (Flat) Rivet Nut
Brand: Ornit USA
SKU: PSE-a81cbb
Price: 9.99 USD
Availability: OutOfStock

SKU:PSE-a81cbb

Ornit P-Series M5 x 17.0mm Cylindrical Head (Flat) Rivet Nut for secure and efficient fastening applications.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

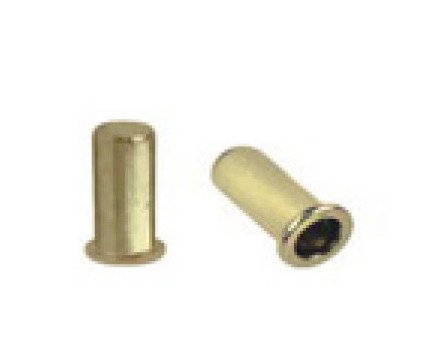

The P-Series M5 x 17.0mm Cylindrical Head (Flat) Rivet Nut by Ornit offers exceptional strength and durability. Constructed from high-quality steel with a yellow zinc plated finish, this rivet nut is ideal for applications requiring a secure fastening solution. With a precise dimension range, ranging from 1.5mm to 2.5mm grip capacity, and a hole size of 7.1mm, this rivet nut provides reliability and efficiency in installation. Additionally, stainless steel and aluminum variations are available, offering flexibility to meet diverse project requirements. The serration style provides enhanced grip for added security.

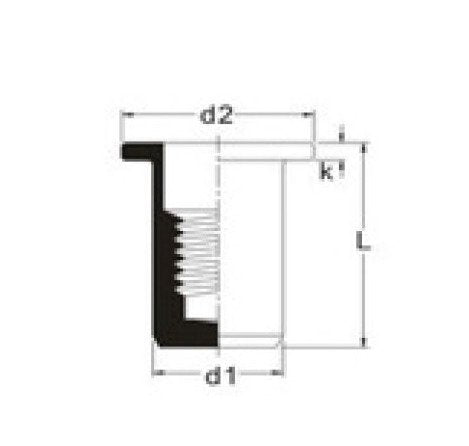

Product Specifications

Dimensions Dimension D1

7.0 mm

Dimensions Dimension D2

10.0 mm

Dimensions Dimension K

1.0 mm

Dimensions Dimension L

17.0 mm

Dimensions Hole Size

7.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M5 x 17.0mm Cylindrical Head (Flat) Rivet Nut
