P-Series M6 Thread Countersunk Head Rivet Nut, 20.5mm

Name: P-Series M6 Thread Countersunk Head Rivet Nut, 20.5mm
Brand: Ornit USA
SKU: PSE-2ba9e5
Price: 15.99 USD
Availability: OutOfStock

SKU:PSE-2ba9e5

High-quality P-Series Rivet Nut with M6 Thread & 20.5mm Dimension L, ideal for industrial use.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

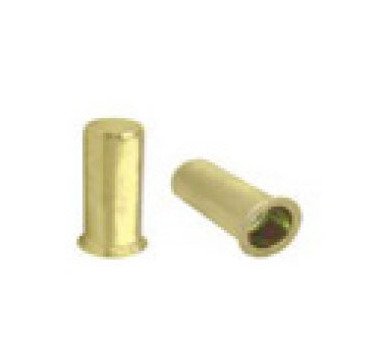

The P-Series 20.5mm Dimension L and M6 Thread Size Open End Countersunk Head Rivet Nut by Ornit is a high-quality steel fastener with a yellow zinc plated finish. It offers a minimum grip range of 1.0mm and a maximum grip range of 2.5mm, suitable for various applications. This rivet nut is available in stainless steel and aluminum, with serration style options, meeting diverse needs in construction and industrial projects.

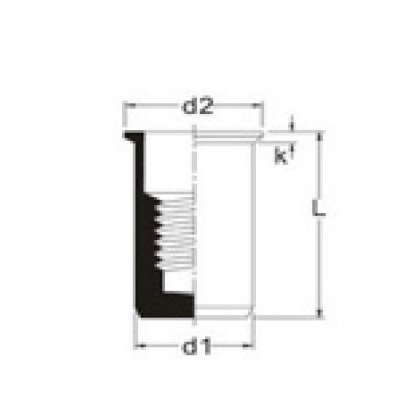

Product Specifications

Dimensions Dimension D1

9.0 mm

Dimensions Dimension D2

10.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

20.5 mm

Dimensions Hole Size

9.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size
