P-Series M6 Thread Open End Countersunk Head Rivet Nut - 22.0mm

Name: P-Series M6 Thread Open End Countersunk Head Rivet Nut - 22.0mm
Brand: Ornit USA
SKU: PSE-7aaf8a
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-7aaf8a

Enhance fastening with P-Series 22.0mm M6 Open End CSK Rivet Nut for secure and durable attachments wherever needed.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

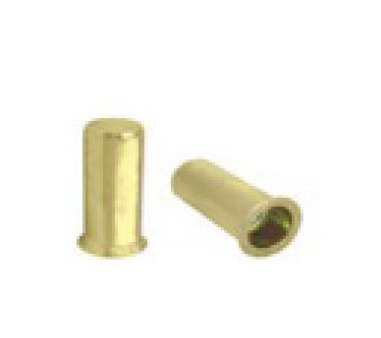

The P-Series 22.0mm Dimension L and M6 Thread Size Open End Countersunk Head Rivet Nut by Ornit is a reliable fastening solution crafted from steel with a Yellow Zinc Plated finish. With a grip range of 2.5mm to 4.0mm and versatile hole size of 9.1mm, this rivet nut offers secure attachment in a wide range of applications. Stainless Steel & Aluminum options are available, catering to diverse needs. Experience easy installation and durable performance with the P-Series Rivet Nut.

Product Specifications

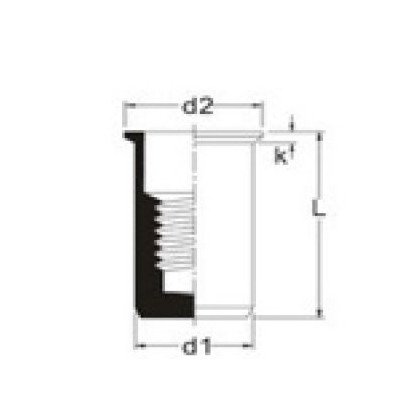

Dimensions Dimension D1

9.0 mm

Dimensions Dimension D2

10.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

22.0 mm

Dimensions Hole Size

9.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M6 Thread Open End Countersunk Head Rivet Nut - 22.0mm
