P-Series M8 CSK Rivet Nut - 17.0mm

Name: P-Series M8 CSK Rivet Nut - 17.0mm
Brand: Ornit USA
SKU: PSE-2341ef
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-2341ef

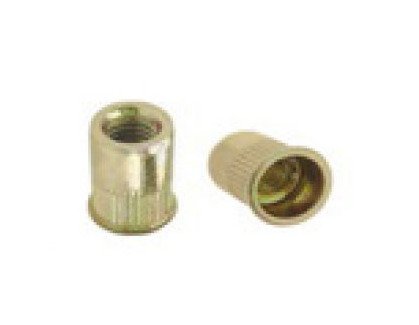

Top-quality P-Series M8 CSK Rivet Nut - 17.0mm. Steel construction with yellow zinc finish. Secure grip range 2.5-4.0mm. Versatile and durable for assembly projects.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The P-Series 17.0mm Dimension L and M8 Thread Size Open End Countersunk Head (CSK) Rivet Nut is a top-quality fastening solution designed by Ornit. Constructed from sturdy steel with a yellow zinc finish, this rivet nut offers a secure grip range of 2.5mm to 4.0mm, perfect for various applications. With options for Stainless Steel and Aluminum materials and serration style, this rivet nut provides versatility and durability in assembly projects. Meet your fastening needs efficiently and reliably with this high-performance rivet nut.

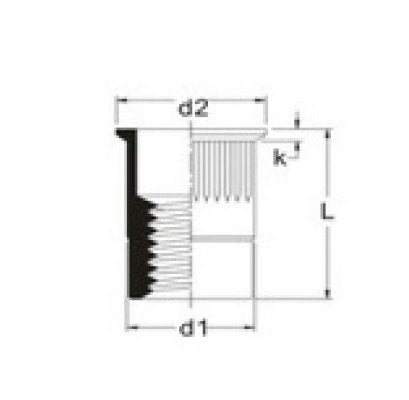

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

12.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

17.0 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

4.0 mm

Dimensions Minimum Grip Range

2.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M8 CSK Rivet Nut - 17.0mm
