P-Series M8 Thread Cylindrical Head Rivet Nut

Name: P-Series M8 Thread Cylindrical Head Rivet Nut
Brand: Ornit USA
SKU: PSE-d44453
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-d44453

High-quality P-Series M8 Rivet Nut for secure and efficient fastening. Steel construction with yellow zinc plating. Versatile and durable.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

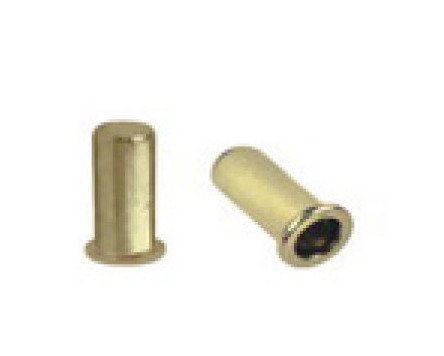

The P-Series 22.5mm Dimension L and M8 Thread Size Open End Cylindrical Head Rivet Nut by Ornit is a premium solution for fastening applications. Made of steel with a yellow zinc-plated finish, this rivet nut offers a secure grip range of 1.0mm to 2.5mm. With dimensions meeting industry standards and options for stainless steel or aluminum, it ensures durability and versatility. The cylindrical head design provides a sleek aesthetic and efficient fastening performance, making it ideal for a wide range of projects.

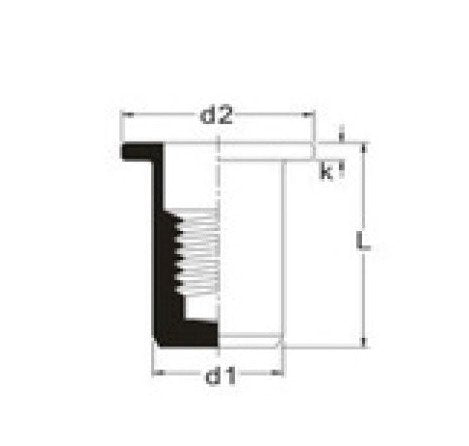

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

14.0 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

22.5 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M8 Thread Cylindrical Head Rivet Nut
