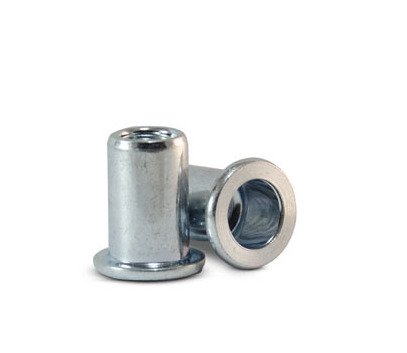

P-Series M8 Thread Open End Rivet Nut, 17.0mm L, Cylindrical Head

Name: P-Series M8 Thread Open End Rivet Nut, 17.0mm L, Cylindrical Head
Brand: Ornit USA
SKU: PSE-65eaf4
Price: 14.99 USD
Availability: OutOfStock

SKU:PSE-65eaf4

High-quality P-Series M8 Thread Rivet Nut with 17.0mm L, Cylindrical Head - Reliable fastening solution for industry standards.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The P-Series 17.0mm Dimension L and M8 Thread Size Open End Cylindrical Head (Flat) Rivet Nut is a versatile and durable fastening solution designed by Ornit. Made of high-quality steel with a yellow zinc plated finish, this rivet nut offers reliable performance. With dimensions meeting industry standards, including a minimum grip range of 1.0mm and a maximum grip range of 2.5mm, this rivet nut ensures secure fastening. It also features a 11.1mm hole size, 11.0mm dimension d1, 14.3mm dimension d2, and 1.5mm dimension k. Discover the strength and precision of the P-Series for your fastening needs.

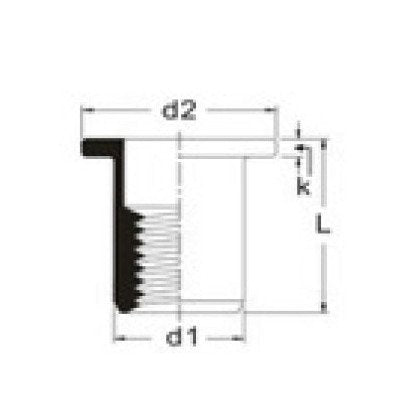

Product Specifications

Dimensions Dimension D1

11.0 mm

Dimensions Dimension D2

14.3 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

17.0 mm

Dimensions Hole Size

11.1 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

P-Series M8 Thread Open End Rivet Nut, 17.0mm L, Cylindrical Head
